Pneumatic Actuators Explained: Types and Real-World Examples of Pneumatic Systems

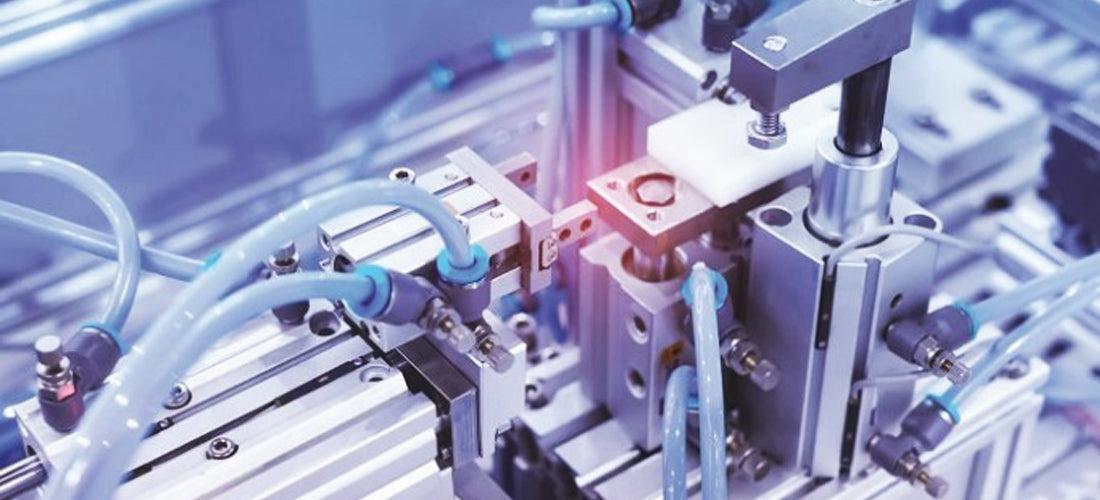

Pneumatic actuators are a cornerstone of modern automation, powering everything from factory assembly lines to the brakes on buses. By converting compressed air into motion, they provide a clean, reliable, and cost-effective solution for countless industries. Understanding the different pneumatic actuator types, how they work, and real-life applications helps us see why they remain so widely used.

Main Pneumatic Actuator Types

Here are some of the actuator types:

Linear Actuators (Cylinders)

Linear pneumatic actuators, also known as cylinders, are by far the most widely used type of pneumatic actuator. Their primary function is to produce straight-line motion, making them ideal for tasks such as lifting heavy loads, pushing objects along an assembly line, or pressing components into place during manufacturing. Because of their simple yet effective design, they are a backbone in many examples of pneumatic systems across industries.

There are two main categories of pneumatic cylinders: single-acting cylinders, which use compressed air for movement in one direction and a spring for the return stroke, and double-acting cylinders, which use compressed air to move the piston in both directions. Double-acting cylinders are especially popular in industrial automation because they provide greater control, consistency, and efficiency.

Real-World Applications:

Manufacturing and Assembly Lines – moving parts or positioning components.
Packaging Machines – pressing seals or pushing products into cartons.
Automotive Industry – controlling machinery during welding, stamping, or lifting processes.
Robotics – providing controlled linear motion for repetitive tasks.

Advantages:

They have a straightforward design that makes maintenance and installation simple.
Cost-effective compared to hydraulic or electric actuators.
Durable and reliable in demanding environments.
Clean operation, as they use air rather than fluids.

Limitations:

Restricted to straight-line motion only, unlike rotary actuators.
Require significant physical space, especially for longer strokes.
Less precise than electric actuators when exact positioning is critical.

For businesses looking to incorporate linear actuators into their operations, exploring different cylinder sizes, stroke lengths, and configurations is key. You can browse a wide range of options in our pneumatic cylinders collection to find the right fit for your application.

Rotary Actuators

Compressed air is converted into a controlled rotating motion using rotary actuators. Unlike linear cylinders, which move in straight lines, rotary actuators provide angular movement, making them ideal for tasks that involve opening, closing, or rotating components. They are commonly found in industrial automation, where repetitive rotational actions are needed for efficiency.

The rack and pinion rotary actuator is a popular design that produces dependable and smooth rotation by using a piston attached to a rack to turn a pinion gear. For example, the rotary actuator rack & pinion is built for durability and precision, making it an excellent choice for manufacturing and assembly operations.

Real-World Applications:

Valve Control – frequently used to open and close valves in pipelines or process systems.
Assembly Lines – rotating parts into place for fastening, welding, or inspection.
Material Handling – shifting or reorienting items during production processes.
Robotics – providing compact rotational movement where space is limited.

Advantages:

Compact and efficient design, saving valuable space.
Highly versatile for tasks that require controlled rotation.
Simple to integrate into existing pneumatic systems.

Limitations:

Less precise than electric motors, particularly for fine rotational control.
Limited rotation angles, often capped at 90°, 180°, or 360°.
Not ideal for applications requiring continuous, high-speed rotation.

By offering controlled rotational motion in a compact form, rotary actuators bridge the gap between linear motion devices and electric motors, providing reliable solutions for countless industries.

Grippers and Specialty Actuators

A particular kind of pneumatic actuator designed to grasp, hold, and release things is called a gripper. They are extensively utilized in robotics and automation, fields where accurate component handling is essential. From picking up delicate electronics during assembly to moving packaged goods in high-speed production lines, pneumatic grippers provide a reliable and efficient solution. They come in several designs, including two-jaw, three-jaw, and angular grippers, depending on the shape and size of the items they need to handle.

Specialty actuators, on the other hand, are developed for unique or highly specific applications. These include bellows actuators, which are perfect for producing flexible, smooth movement in tight places, and diaphragm actuators, which regulate motion using flexible membranes. Specialty actuators are often found in industries where standard cylinders or rotary actuators cannot provide the required functionality.

Real-World Applications:

Robotics and Automation – on assembly lines, grippers choose and arrange products.
Packaging Industry – handling bottles, boxes, or irregularly shaped items with consistency.
Medical Equipment – diaphragm actuators used for precise, sterile control of airflow or pressure.
Electronics Manufacturing – specialty actuators assist in handling fragile components.

Advantages:

Extremely adaptable for custom applications across different industries.
Provide specialized motion that standard actuators cannot achieve.
Improve efficiency in handling delicate, small, or uniquely shaped items.

Limitations:

More complex designs can increase initial costs.
May require more specialized maintenance compared to standard cylinders or rotary actuators.

For businesses seeking unique automation solutions, exploring the right actuator type can make all the difference. Browse our full range of specialty actuators to find products tailored to your specific needs.

How Pneumatic Actuators Work

Pneumatic actuators function in a simple yet effective manner:

Air Supply and Compression – Compressed air is generated and stored.
Control Valves and Regulators – Airflow is directed and regulated to control movement.
Conversion of Pressure into Motion – The actuator converts air pressure into linear or rotary movement, depending on its design.

This combination makes pneumatic systems simple, efficient, and reliable in delivering motion where needed.

Benefits and Limitations of Pneumatic Systems
