HAK Hydraulic Quick Couplers and Dust Cups

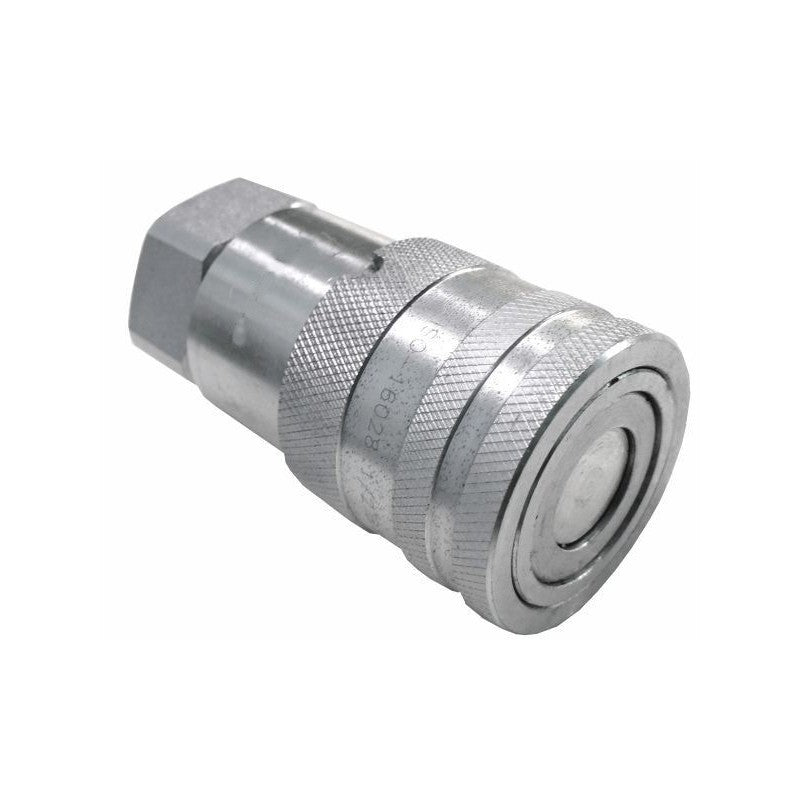

Hydraulic Quick Couplers (ISO 7241 / 5675 Series)

Hydraulic quick couplers are essential for fast and leak-free connections in hydraulic systems, enabling efficient fluid transfer and system reliability. Designed for high-pressure applications, these couplers ensure secure engagement and easy disconnection without fluid loss.

Key Features:

  • High Durability: Critical components are hardened for extended service life.
  • Leak Prevention: Equipped with poppet or ball valves to prevent fluid leakage when uncoupled.
  • Reliable Connection: A dependable ball-locking mechanism secures the mating halves.
  • Precision Machined: Manufactured from solid bar stock for strength and durability.
  • Wide Compatibility: Interchangeable with leading brands such as Parker, Faster, Aeroquip, and Hansen.

Available Series:

  1. HQA (ISO 7241-A) Series:
    • Designed for general hydraulic applications.
    • Interchangeable with Parker 6600, Faster ANV, Aeroquip 5600, and Hansen HA 15000.
  2. HQB (ISO 7241-B) Series:
    • Suitable for a wide range of industries, including agriculture, construction, and industrial hydraulics.
    • Compatible with Parker 60, Faster HNV, Aeroquip FD45, and Hansen HK.
  3. HQC (ISO 5675) Series:
    • Built for heavy-duty agricultural and industrial applications.
    • Uses chrome-alloy balls for metal-to-metal sealing.
    • Compatible with Parker 4000, Faster NV/NS series.

Technical Specifications:

  • Body Sizes: 1/4", 3/8", 1/2", 3/4", 1"
  • Rated Pressure: 3000-5000 PSI (depending on size)
  • Rated Flow: 3-50 GPM (depending on size)
  • Temperature Range: -12°C to 120°C
  • Seal Material: NBR (Nitrile Rubber)

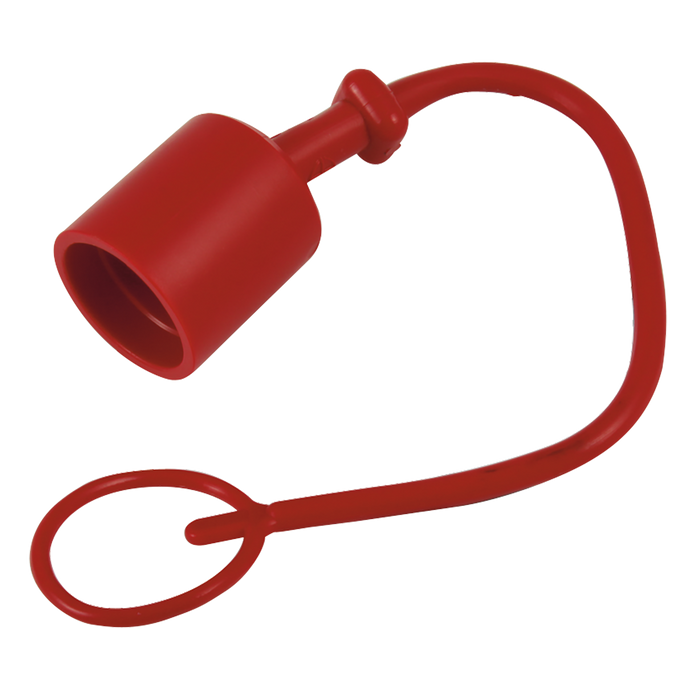

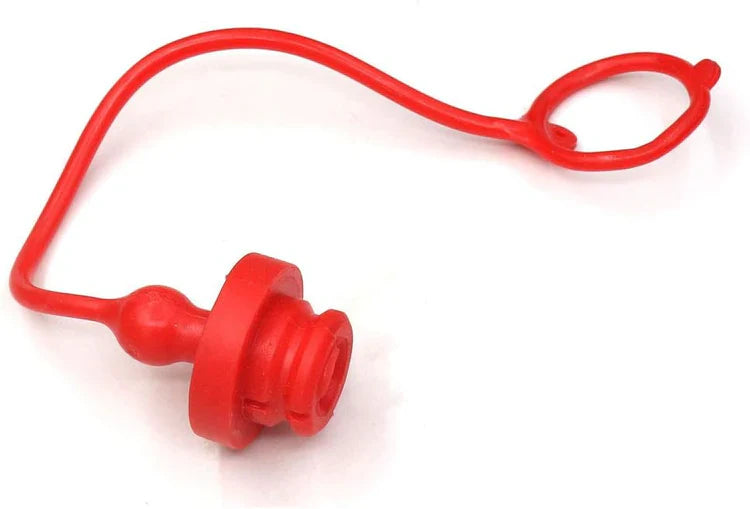

Dust Plug Accessories

Dust plugs protect hydraulic couplers and components from dirt, debris, and contaminants, ensuring optimal system performance and longevity.

Key Features:

  • Prevents Contamination: Shields couplers from dust, dirt, and moisture.
  • Durable Material: Made from high-quality plastic or metal for maximum protection.
  • Easy Installation: Secure fit ensures convenience in maintenance.
  • Available in Multiple Sizes: Designed to fit standard hydraulic coupler sizes.
