Pneumatic systems are the unsung heroes of modern industry, quietly powering everything from automated assembly lines to the nimble movements of robotic arms. But here's the thing: a poorly designed pneumatic system bleeds resources and tanks productivity. This guide arms you with the knowledge to build pneumatic systems that are efficient by design, maximizing performance and slashing costs. Whether you're a seasoned engineer, a hands-on maintenance technician, or simply intrigued by the world of pneumatics, we'll walk you through the core principles, best practices, and potential pitfalls you need to know.
What is a Pneumatic System?
At its heart, a pneumatic system is all about using compressed air to transmit and control power. Think of it like power steering, only powered by air instead of hydraulic fluid. The basic idea is simple: compress air, store it, and then release it to drive actuators that do the work.
So, why choose pneumatics? Compared to hydraulic systems, pneumatics offer a cleaner, simpler, and often faster solution. And when stacked against electric systems, they can be more cost-effective and significantly safer in hazardous environments. You've probably encountered pneumatic system examples everywhere from the trusty air brakes on trucks to the intricate machinery on factory floors and even the dentist's drill. Talk about versatility, right?
6 Core Components of Pneumatic Systems
To truly master pneumatic system design, you need to understand each component. Let's break them down:
-
Air Compressor: Compresses and stores ambient air under pressure, making it the system's workhorse. You'll find different types for different needs, including smaller, high-pressure units versus larger, volumetric systems for high-demand applications.
-
Actuators (Cylinders, Rotary Actuators): These are the muscles of the system, transforming compressed air into mechanical motion. Cylinders provide linear movement (pushing, pulling), while rotary actuators offer rotational power.
-

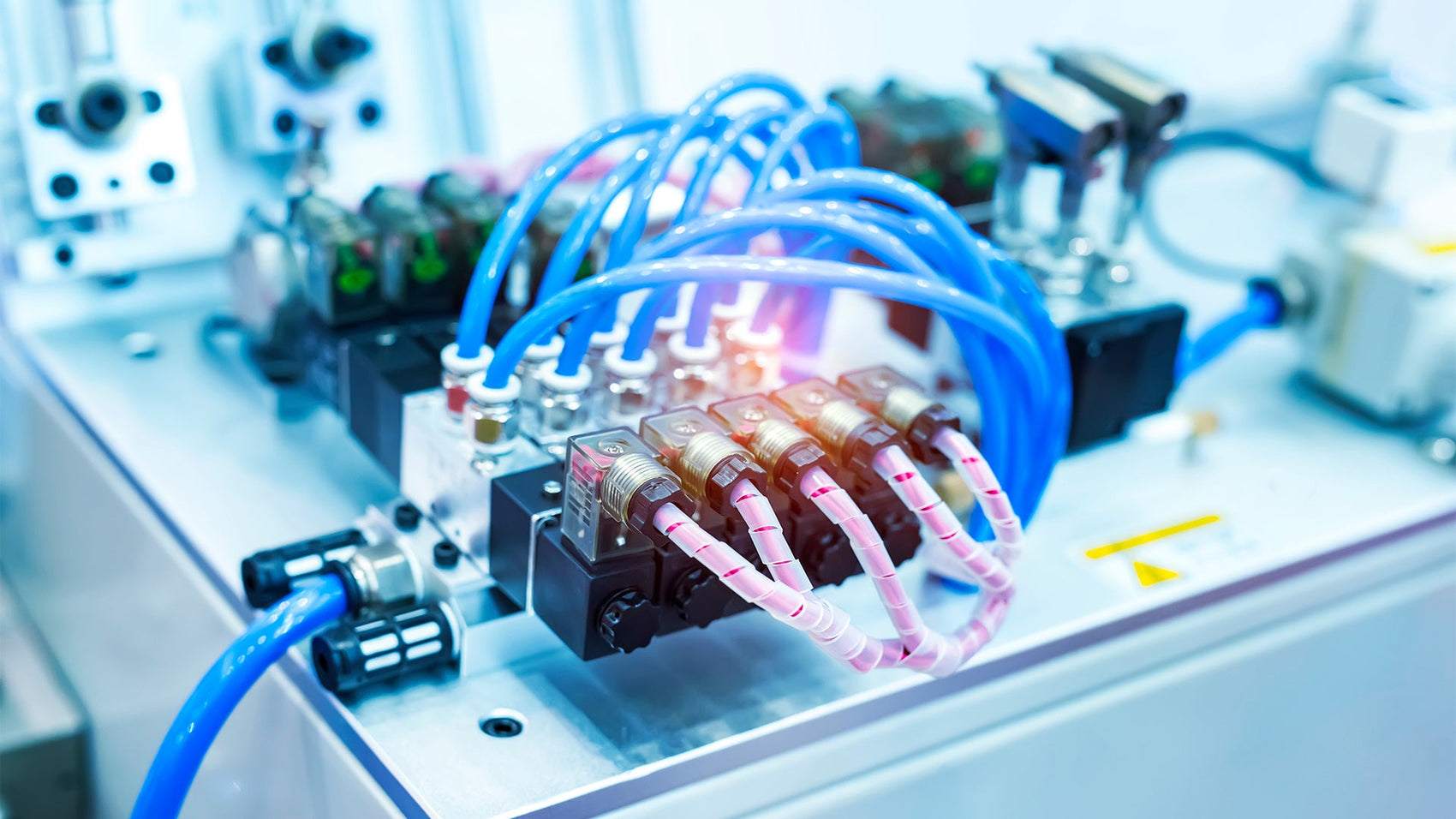

Valves (Directional Control, Flow Control, Pressure Relief): These are the traffic cops, controlling the direction, speed, and pressure of the air. Directional control valves route the air where it needs to go. Flow control valves regulate the actuator speed. Pressure relief valves act as safety valves, preventing over-pressurization.
-
Filters, Regulators, and Lubricators (FRLs): Think of these as the system's health and wellness package. Filters remove dirt and debris. Regulators ensure consistent pressure. And lubricators add a touch of oil to the air to minimize friction inside the system.
-
Tubing and Fittings: The arteries and veins of your system carry the compressed air from point A to point B. You need to pick the right materials and ensure tight connections to minimize pressure loss and leaks.
-
Control Units and Sensors: The brains of the operation, controlling the actuators based on input from various sensors. Programmable logic controllers (PLCs) step in and orchestrate complex sequences.
Key Principles for Designing Efficient Pneumatic Systems
Efficiency isn't just a nice-to-have; it's crucial for cutting costs and boosting overall performance. Keep these principles in mind:
-
Load Calculation and Force Requirements: Do your homework and accurately calculate the force required for each task, which helps you from having components that are too big or too small.
-
Pressure and Flow Rate Optimization: Find that sweet spot for pressure and flow rate for each actuator. Too much pressure is just wasting energy!
-
Correct Component Sizing: Think "Goldilocks" – components that are correctly sized. Undersized valves act like roadblocks to air flow, oversized ones gulp energy.
-
Minimize Air Leaks and Pressure Drops: Track down air leaks like a bloodhound and fix them. Use top-notch sealing components and design your system to minimize long, winding tubing runs.
-
Energy-Efficient Circuit Design: Build circuits that are smart about air usage. Here, pilot-operated valves and sequence valves can be invaluable.
-
Safety and Compliance Standards: Never skimp on safety. Always adhere to relevant standards and regulations to protect your team and prevent accidents.
Step-by-Step Guide to Pneumatic System Design
Designing a pneumatic system can feel daunting, so break it down into manageable steps:
-
Step 1: Define System Objectives and Load Requirements: Nail down exactly what the system needs to do. Define forces, speeds, and cycle times up front.
-
Step 2: Select Appropriate Actuators: Pick actuators that can handle the loads and create the motions you need. Don't forget to consider stroke length, mounting options, and other factors for easy integration.
-
Step 3: Choose the Right Valves and Control Strategy: Valves are key, so choose valves with the right flow capacity, response time, and control features. How will it be controlled?
-
Step 4: Design Air Supply and Distribution Layout: Plan an air supply system that can deliver enough compressed air while minimizing pressure drops along the way.
-
Step 5: Simulate and Prototype the System: Run simulations to spot potential problems and fine-tune performance before you start bending metal.
-
Step 6: Test, Refine, and Implement: Put your prototype through its paces under real-world conditions. Tweak and refine as needed before rolling out the final system.
Top Practices for Maintaining Pneumatic Systems
Regular maintenance keeps your pneumatic system humming and extends its lifespan:
-
Regular Inspection and Servicing: Put a regular inspection schedule in place to catch issues early. Observe the suggested servicing intervals provided by the manufacturer.
-
Leak Detection and Repair: Make leak detection a routine task. The sooner you find and fix leaks, the more energy you'll save.
-
Filter and Lubrication Maintenance: Swap out those filters on schedule and make sure your lubricator is properly filled. Consult the manual for best practices.
-
Pressure Monitoring: Keep an eye on system pressure. It should be operating within the designed range.
Common Mistakes to Avoid in Pneumatic System Design
Steer clear of these blunders to prevent headaches and maximize efficiency:
-
Oversized or Undersized Components: Incorrect sizing leads to inefficiency and components wearing out way too fast.
-
Ignoring Energy Losses Due to Leakage: Think of air leaks as money flying straight out the window. Address them promptly.
-
Poor Layout and Long Tubing Runs: Spaghetti-like layouts with long tubing runs increase pressure drops and drag down efficiency.
-
Inadequate Filtering or Lubrication: Skimping on filtration and lubrication is a recipe for premature wear and system failure.
3 Pneumatic Examples in Real-World Applications
Let’s look at some example cases:
-
Case study 1: Efficient pneumatic packaging line: A company redesigned its packaging line by optimizing pressure settings, implementing leak detection programs, and switching to high-efficiency valves. The result? Significant reductions in air consumption and associated costs.
-
Case study 2: Retrofitting a factory with smart pneumatic controls: A factory upgraded its existing pneumatic system with smart controllers and sensors. This allowed for better monitoring, fine-tuning of performance, and reduced downtime.
-
Case study 3: Sustainable design using low-pressure systems: A manufacturer designed a new pneumatic system using low-pressure components and optimized tubing layouts. This resulted in a sustainable, energy-efficient system.
Designing efficient pneumatic systems boils down to three things: a solid understanding of components, adherence to core principles, and consistent application of best practices. By following these guidelines, you can create pneumatic systems that are reliable, cost-effective, and sustainable for the long haul. Put load calculation at the top of your list, always optimize pressure and flow rates, and never neglect regular maintenance. You'll be well on your way to pneumatic mastery.
