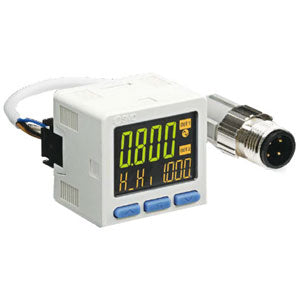

ZSE20B(F)-L, Pressure Sensor, IO-Link Compatible
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
ZSE20B(F)-L is a digital vacuum sensor with IO-Link communication protocol support. When paired with an IO-Link master, measured values, and settings can be accessed from the HMI screen of a PLC. ZSE20B(F)-L incorporates IO-Link version 1.1 and COM2 speed. 16-bit process data include 2 output bits for set points, a diagnosis bit and 13 bits for the measured value. The 3-screen, 3-color display shows the instantaneous reading in red or green, and the setting label and its numerical value in orange. ZSE20B(F)-L is UL/CSA, CE and RoHS compliant, with an IP65 enclosure rating.
- 3 manual setting modes: 3-step, simple, function selection
- 7 pressure units: MPa, kPa, kgf/cm2, bar, psi, inHg, mmHg
- 1 switch ouput (selectable NPN or PNP)
- M5 female, R1/8 male or 1/8 NPT piping port
- Bracket or panel mounting options
- Certifications: CE, RoHS
