VXZ2*3, Pilot Operated, 2 Port Solenoid Valve for Oil, Single Unit
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

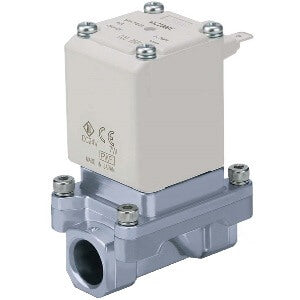

The VXZ series for oil is a 2 port, pilot operated solenoid valve capable of operating at higher differential pressures by maintaining a zero differential pressure on the seat. The molded coil offers low power consumption, long life and high reliability. Available for port size 1/4 to 1 inch. Flow rate ranges from Cv of 1.9 to 10.2
- Body material: brass, stainless steel
- Medium: Oil with viscosity not exceeding 50 mm_/s. Fluid temperature: -5 to 60¡C
- Maximum pressure: 1.5MPa
- IP65 enclosure
- Valve type: Normally closed , Normally open
