SMC

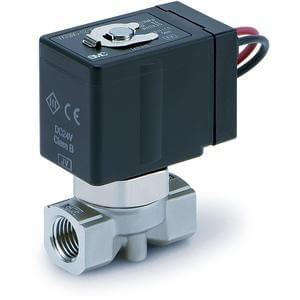

VXE, Energy Saving Type, 2 Port Solenoid Valve (Single Unit)

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The VXE2 is a direct operated 2 port solenoid valve for wide range of fluids with a built in power saving circuit that reduces power consumption during holding by 1/3. Available port size ranges from 1/8 to 1/2 inch. Flow rate ranges from Cv of 0.18 to 2.20

  • Power saving circuit to reduce power consumption by 1/3 during holding operation
  • Power consumption: 1.5W (size 1), 2.3W (size 2), 3W (size 3)
  • Body material: brass (C37), stainless steel
  • Seal material available: NBR, FKM, EPDM, PTFE
  • Rated voltage: 24VDC, 12VDC
Download PDF
