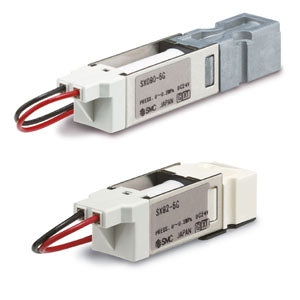

SX90/090, 2/3 Port Direct Operated Poppet Style Solenoid Valve for Air and Nitrogen
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
SX90 and SX090 are low profile 2/3 Port Direct Operated Poppet Style Solenoid Valves for Air and Inert Gases. The 2 port SX90 can provide large flow rate of 45 L/min from its compact body. The 3 port SX090 can provide large flow rate of 90 L/min from its compact body. Example applications for SX90 and SX090 are blood pressure measuring device, portable oxygen concentrator, chip mounter, air blow and sorting.
- 2-port normally closed & universal and 3-port universal actuation type
- Operating pressure: -100 kPa to 0.2 MPa
- Flow rate: max 90 L/min (3-port)
- Enclosure: IP40
- Voltage: 12 VDC, 24 VDC
- Available with power saving circuit to hold the actuation: 0.7W during holding
