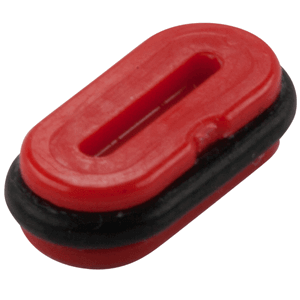

SV1000/2000/3000, SUP / EXH Block Disk, Tie-Rod Base Type 10

Supply / Exhaust port block disk for Series SV Type 10: Tie-Rod Base Manifold. By placing a SUP block disk in a manifold valveÕs pressure supply passage, two different high and low pressures can be supplied to one manifold. By installing an EXH block disk in a manifold valveÕs exhaust passage, the valveÕs exhaust can be separated so that it will not affect other valves. It can also be used on a manifold with mixed positive pressure and vacuum. (Two pieces are required to block EXH on both sides. However, Series SV1000 and 2000 type 10 manifolds require only one piece.)

• Supply / Exhaust port block disk for Series SV Type 10: Tie-Rod Base Manifold
