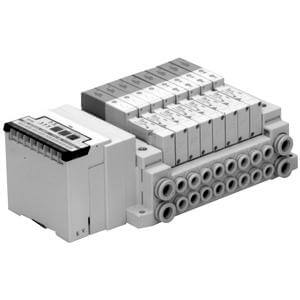

SS5V1-10S3, 1000 Series, Tie Rod Base Manifold, Dedicated Output Serial Wiring (for EX120)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes to manifold stations are greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base type manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids.
- Tie rod base EX120 series for SV1000 valve
- Dedicated output serial wiring
- Number of outputs: 16
- Maximum 16 stations available as standard
- 6 port sizes available
- Optional DIN rail mount
