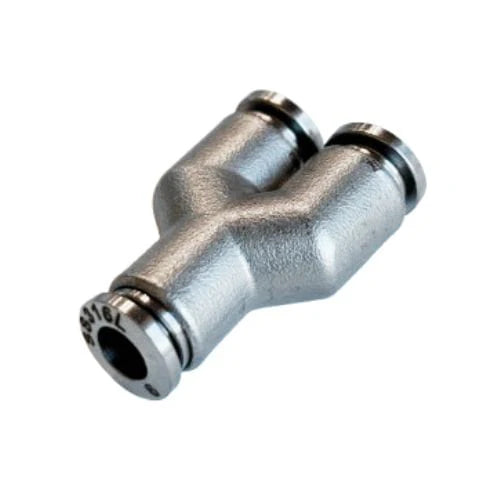

HAK Pneumatic SPY SERIES Stainless Steel "Push to Connect Y Union"
Regular price
$16.64
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
STAINLESS STEEL PNEUMATIC PUSH-IN FITTINGS.
The push-in fittings (also called pneumatic push-in fittings, push-to-connect fittings, and one-touch fittings in some locations).Inside the push-in fittings, stainless steel tube gripping claw, collar, and release sleeve (collet) are assembled to offer a quick hold and release mechanism to provide a low disconnection force for easy removal of the tubing with no tools necessary.PUSH IN FITTINGS WITH METRIC AND INCH SIZE TUBE, NPT CONNECTION THREAD.
H.A.K. NPT thread push-in fittings cover a complete line of types, models, and sizes to satisfy various tube demands.H.A.K. push-to-connect fittings are designed for use with soft and stiff tubing, such as nylon and polyethylene tubing.H.A.K. push-in fittings are designed for use with nylon and polyethylene tubing that accommodate metric tubing O.D. ranging from 4mm to 12mm and accommodate inch tubing from 1/8” to 1/2”. Thread sizes range from 1/8” NPT to 1/2” NPT.Construction/Specification
| Fluid | Air, Water and Other Fluid |
|---|---|
| Operating Pressure | 29.5 in Hg ~ 260 PSI |
| Operating Temperature | 0°C ~ 150°C (32°F ~ 302°F) |
| Applicable Tube | PU Polyurethane and Nylon |
| Material | 316 Stainless Steel |
Dimensions
| Model | O.D.D | O.D.D1 | O.D.D2 | O.D.D3 | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|
| SPY-4mm | 4 | 4 | 11.5 | 3.2 | 36.5 | 11 | 14.5 |
| SPY-6mm | 6 | 6 | 13.5 | 3.2 | 37.5 | 13 | 15 |
| SPY-8mm | 8 | 8 | 15 | 3.2 | 39.8 | 15 | 18 |
| SPY-10mm | 10 | 10 | 19 | 4.2 | 50 | 18 | 21 |
| SPY-12mm | 12 | 12 | 21.5 | 4.2 | 53 | 21 | 21.5 |
Learn More: Assembly Instructions
