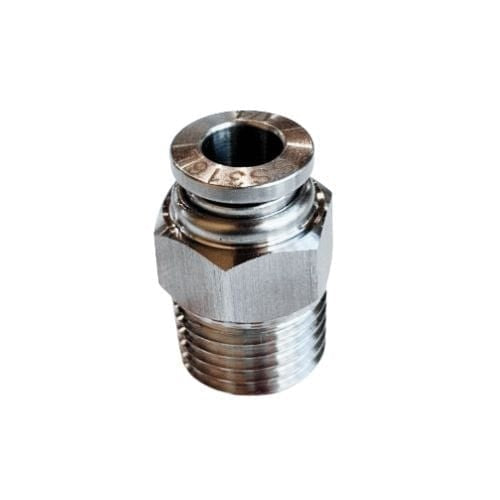

HAK Pneumatic SPC SERIES Stainless Steel Push to Connect Straight Fitting Imperial Tube x NPT Male
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
STAINLESS STEEL PNEUMATIC PUSH IN FITTINGS.
The push-in fittings (also called pneumatic push-in fittings, push-to-connect fittings, and one-touch fittings in some locations).Inside the push-in fittings, stainless steel tube gripping claw, collar, and release sleeve (collet) are assembled to offer a quick hold and release mechanism to provide a low disconnection force for easy removal of the tubing with no tools necessary.
PUSH IN FITTINGS WITH METRIC AND INCH SIZE TUBE, NPT CONNECTION THREAD.
HAK Pneumatic NPT thread push-in fittings cover a complete line of types, models, and sizes to satisfy various tube demands.
HAK Pneumatic push-to-connect fittings are designed for use with soft and stiff tubing, such as nylon and polyethylene tubing.
HAK Pneumatic push-in fittings are designed for use with nylon and polyethylene tubing that accommodate metric tubing O.D. ranging from 4mm to 12mm and accommodate inch tubing from 1/8” to 1/2”. Thread sizes range from 1/8” NPT to 1/2” NPT.
Construction/Specification
| Fluid | Air, Water and Other Fluid |
|---|---|
| Operating Pressure | 29.5 in Hg ~ 260 PSI |
| Operating Temperature | 0°C ~ 150°C (32°F ~ 302°F) |
| Applicable Tube | PU Polyurethane and Nylon |
| Material | 316 Stainless Steel |
| Seal Material | FKM Seal |
Dimensions
| Item Number | Tube O.D. | Thread |
|---|---|---|
| SPC 5/32"-1/8" | 5/32" | 1/8" NPT |
| SPC 1/4"-1/8" | 1/4" | 1/8" NPT |
| SPC 1/4"-1/4" | 1/4" | 1/4" NPT |
| SPC 5/16"-1/8" | 5/16" | 1/8" NPT |
| SPC 5/16"-1/4" | 5/16" | 1/4" NPT |
| SPC 5/16"-3/8" | 5/16" | 3/8" NPT |
| SPC 3/8"-1/4" | 3/8" | 1/4" NPT |
| SPC 3/8"-3/8" | 3/8" | 3/8" NPT |
| SPC 1/2"-1/4" | 1/2" | 1/4" NPT |
| SPC 1/2"-3/8" | 1/2" | 3/8" NPT |
| SPC 1/2"-1/2" | 1/2" | 1/2" NPT |
Learn More: Assembly Instructions
