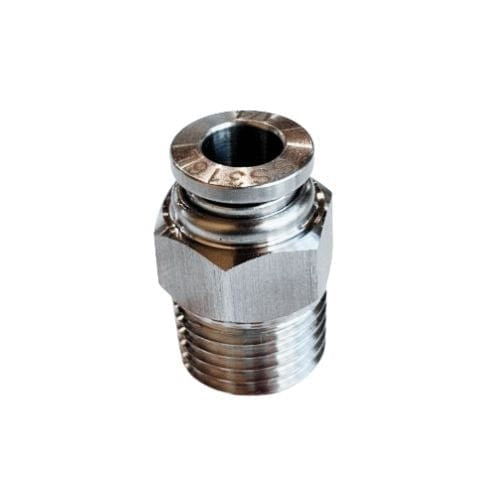

HAK Pneumatic SPC SERIES Stainless Steel "Push to Connect Straight Fitting NPT Male"
Regular price
$7.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
STAINLESS STEEL PNEUMATIC PUSH IN FITTINGS.
The push-in fittings (also called pneumatic push-in fittings, push-to-connect fittings, and one-touch fittings in some locations).Inside the push-in fittings, stainless steel tube gripping claw, collar, and release sleeve (collet) are assembled to offer a quick hold and release mechanism to provide a low disconnection force for easy removal of the tubing with no tools necessary.PUSH IN FITTINGS WITH METRIC AND INCH SIZE TUBE, NPT CONNECTION THREAD.
H.A.K. NPT thread push-in fittings cover a complete line of types, models, and sizes to satisfy various tube demands.H.A.K. push-to-connect fittings are designed for use with soft and stiff tubing, such as nylon and polyethylene tubing.H.A.K. push-in fittings are designed for use with nylon and polyethylene tubing that accommodate metric tubing O.D. ranging from 4mm to 12mm and accommodate inch tubing from 1/8” to 1/2”. Thread sizes range from 1/8” NPT to 1/2” NPT.Construction/Specification

Fluid | Air, Water and Other Fluid |
---|---|
Operating Pressure | 29.5 in Hg ~ 260 PSI |
Operating Temperature | 0°C ~ 150°C (32°F ~ 302°F) |
Applicable Tube | PU Polyurethane and Nylon |
Material | 316 Stainless Steel |
Dimensions

Model | Tube O.D. | R | L1 | L2 | H1 | H2 |
---|---|---|---|---|---|---|
SPC 4-01 | 4 | NPT1/8" | 7.5 | 20 | 3 | 10 |
SPC 6-01 | 6 | NPT1/8" | 7.5 | 20.5 | 4 | 12 |
SPC 6-02 | 6 | NPT1/4" | 9.5 | 22.5 | 4 | 14 |
SPC 8-01 | 8 | NPT1/8" | 7.5 | 25.5 | 5 | 14 |
SPC 8-02 | 8 | NPT1/4" | 8.5 | 24.5 | 5 | 14 |
SPC 8-03 | 8 | NPT3/8" | 10.5 | 21.5 | 6 | 17 |
SPC 10-02 | 10 | NPT1/4" | 9.5 | 31 | 6 | 17 |
SPC 10-03 | 10 | NPT3/8" | 10.5 | 28.5 | 8 | 17 |
SPC 12-03 | 12 | NPT3/8" | 10.5 | 30 | 8 | 21 |
SPC 12-04 | 12 | NPT1/2" | 13.5 | 32.5 | 8 | 21 |
