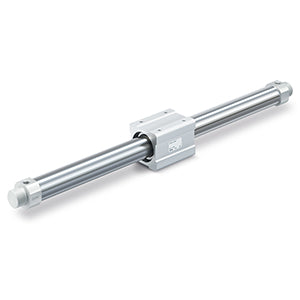

Rodless Cylinder, CY3B-Z, Magnetically Coupled, (Basic)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.
- Bore sizes: 6, 10, 15, 20, 25, 32, 40, 50, 63
- Stroke lengths: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000, up to 5000mm manufacturable stroke
- Minimum operating pressure: 0.12~0.16 MPa (17~23psi)
- Speed: 50~500 mm/sec
