HAK Pneumatic PU (Polyurethane) Air Tube Metric Size
Regular price
$8.20
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Description
- Made of quality material, lightweight, tough, kink-resistant tubing, it is ideal to use with push-to-connect Fittings.
- Compression-resistance (in Usual Temp.) 116 PSI; Tensile Stress: 550 kg/cm2.
- Material: Polyurethane (PU)

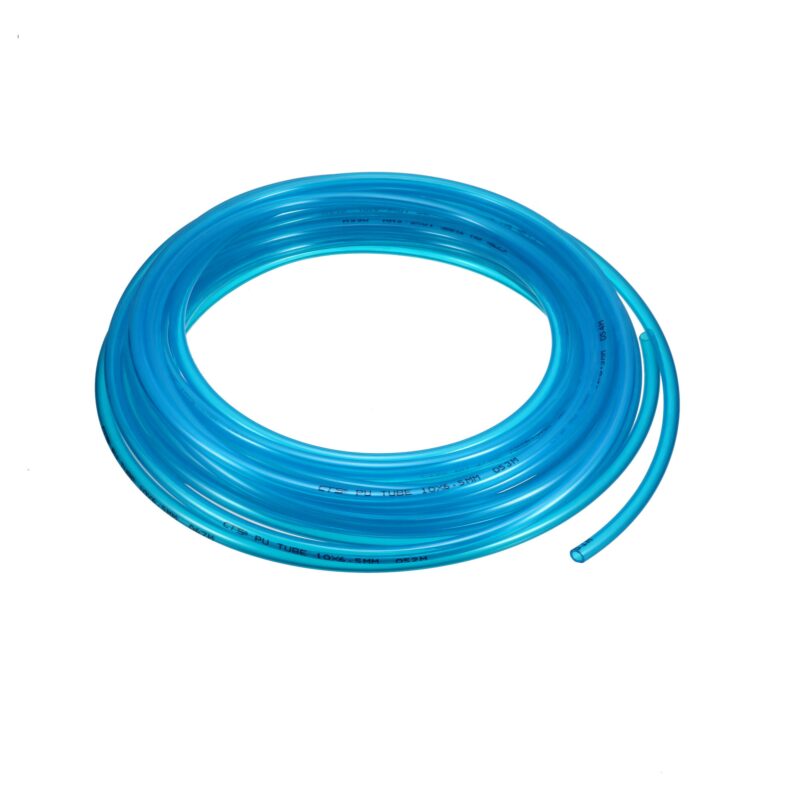

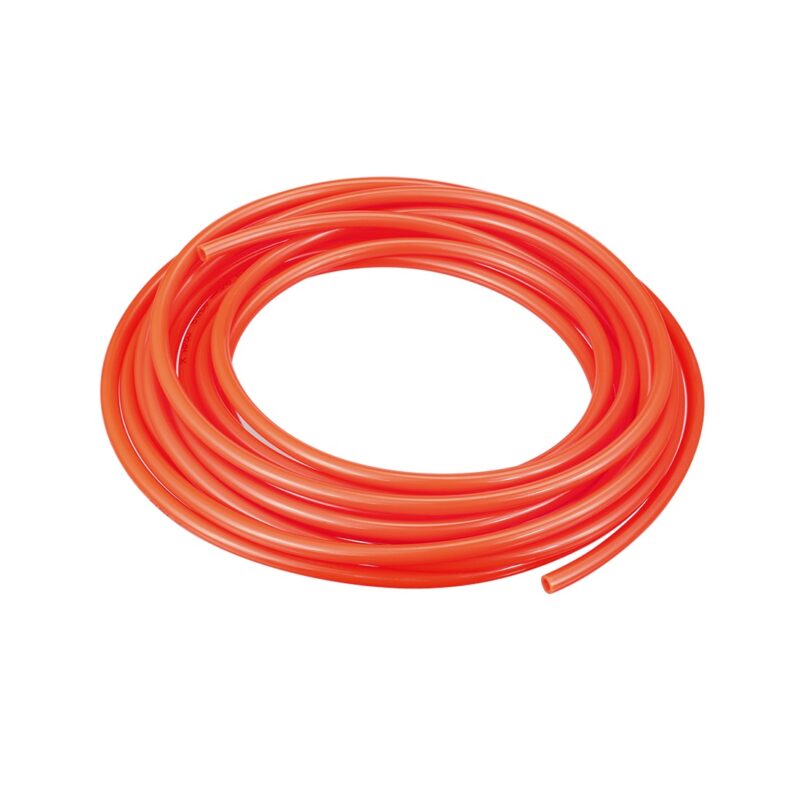

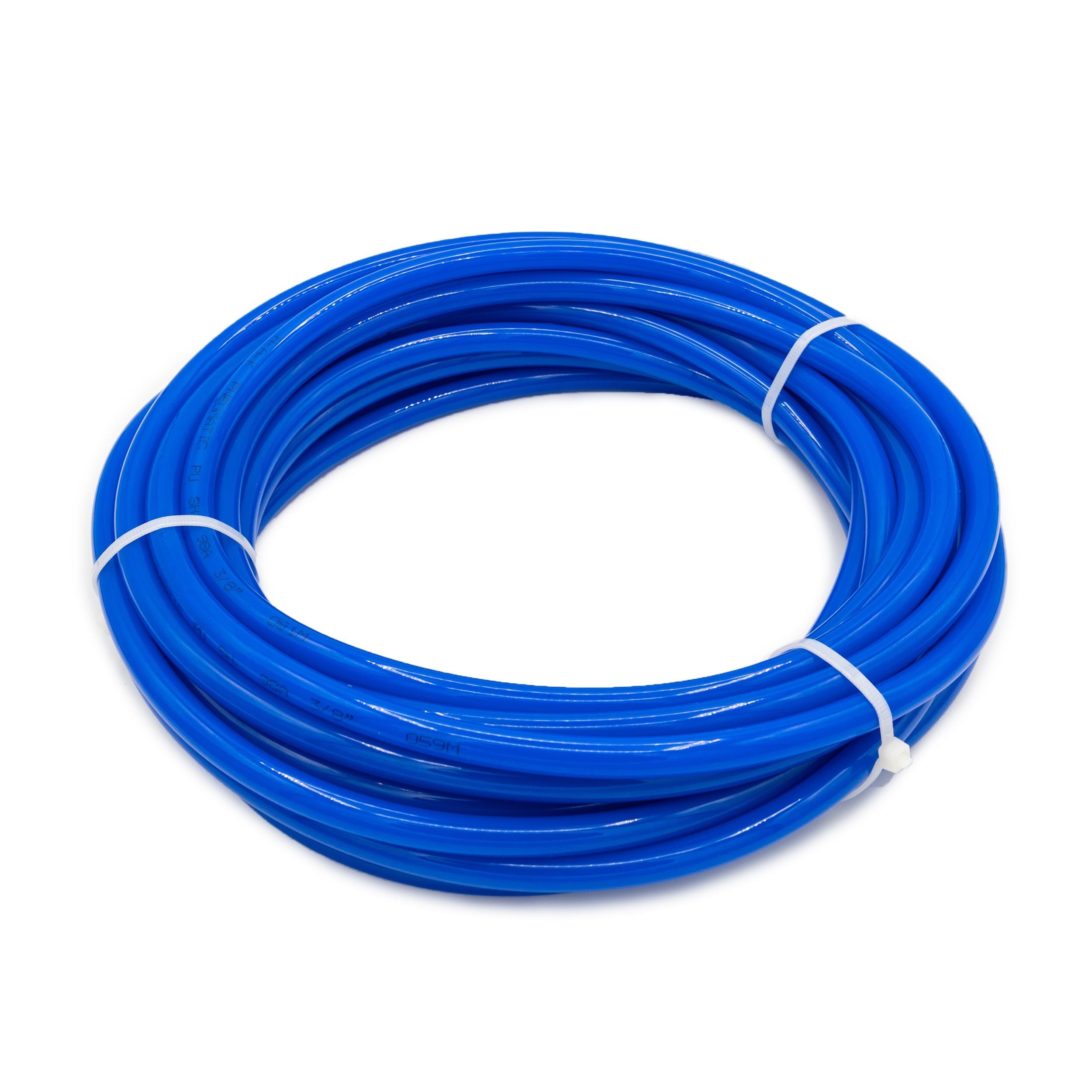

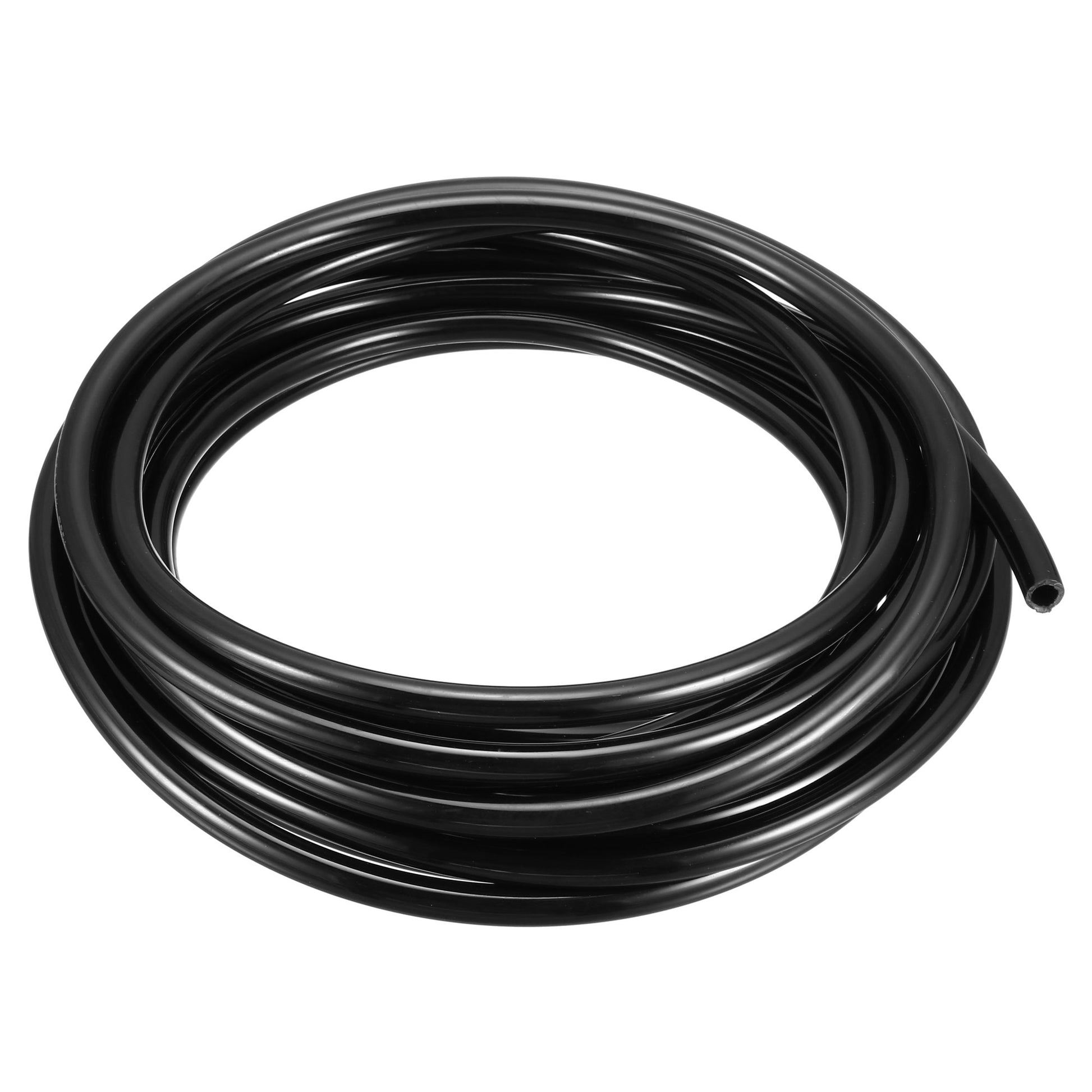

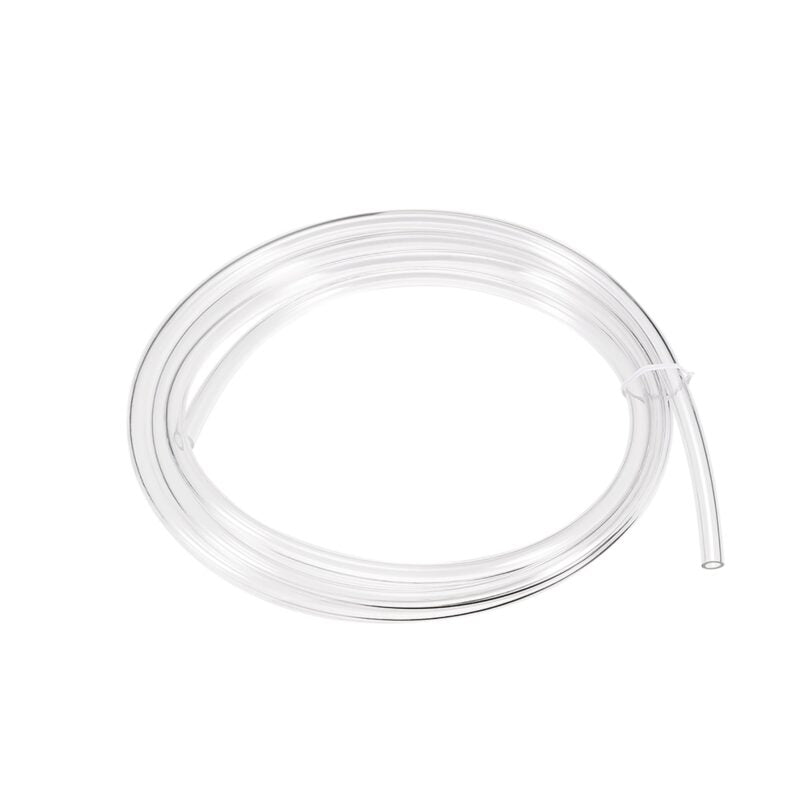

- Color Codes : (BU) blue, (R) Red, (CB) Clear Blue, (B) Black, (C) Transparent (Clear)
- Using flexible has high elasticity to restore memory effect.
- Excellent flexibility, high-pressure resistance, wear resistance, and tear resistance.
- Use range: Pneumatic tools, Instruments, mechanical gas pipeline
- Laboratory automation equipment, General industrial water, and gardening.
Specification
| Working Medium | Air |
|---|---|
| Working Pressure | -29.5in.Hg ~ 145 PSI |
| Ambient Temperature | 5 ~ 165 F ( -15 ~ 74 °C ) |
Dimensions & Available Colors
| Item Number | O.D. mm | ID mm | Wall Thickness mm | Available Colors |
|---|---|---|---|---|
| PU-04(Color)-(Length) | 4mm | 2.5mm | 0.75mm | B / BU / C / CB / R |
| PU-06(Color)-(Length) | 6mm | 4mm | 1.0mm | B / BU / C / CB / R |
| PU-08(Color)-(Length) | 8mm | 5.5mm | 1.5mm | B / BU / C / CB / R |
| PU-10(Color)-(Length) | 10mm | 6.5mm | 1.75mm | B / BU / C / CB / R |
| PU-12(Color)-(Length) | 12mm | 8mm | 2mm | B / BU / C / CB / R |
| PU-14(Color)-(Length) | 14mm | 10mm | 2mm | BU |
| PU-16(Color)-(Length) | 16mm | 13mm | 1.5mm | BU |
