HAK Pneumatic PU (Polyurethane) Air Tube Imperial Size
Regular price
$26.34
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Features
- Made of quality material, lightweight, tough, kink-resistant tubing, it is ideal for push-to-connect Fittings.
- Compression-resistance (in Usual Temp.) 116 PSI; Tensile Stress: 550 kg/cm2.
- Material: Polyurethane (PU)

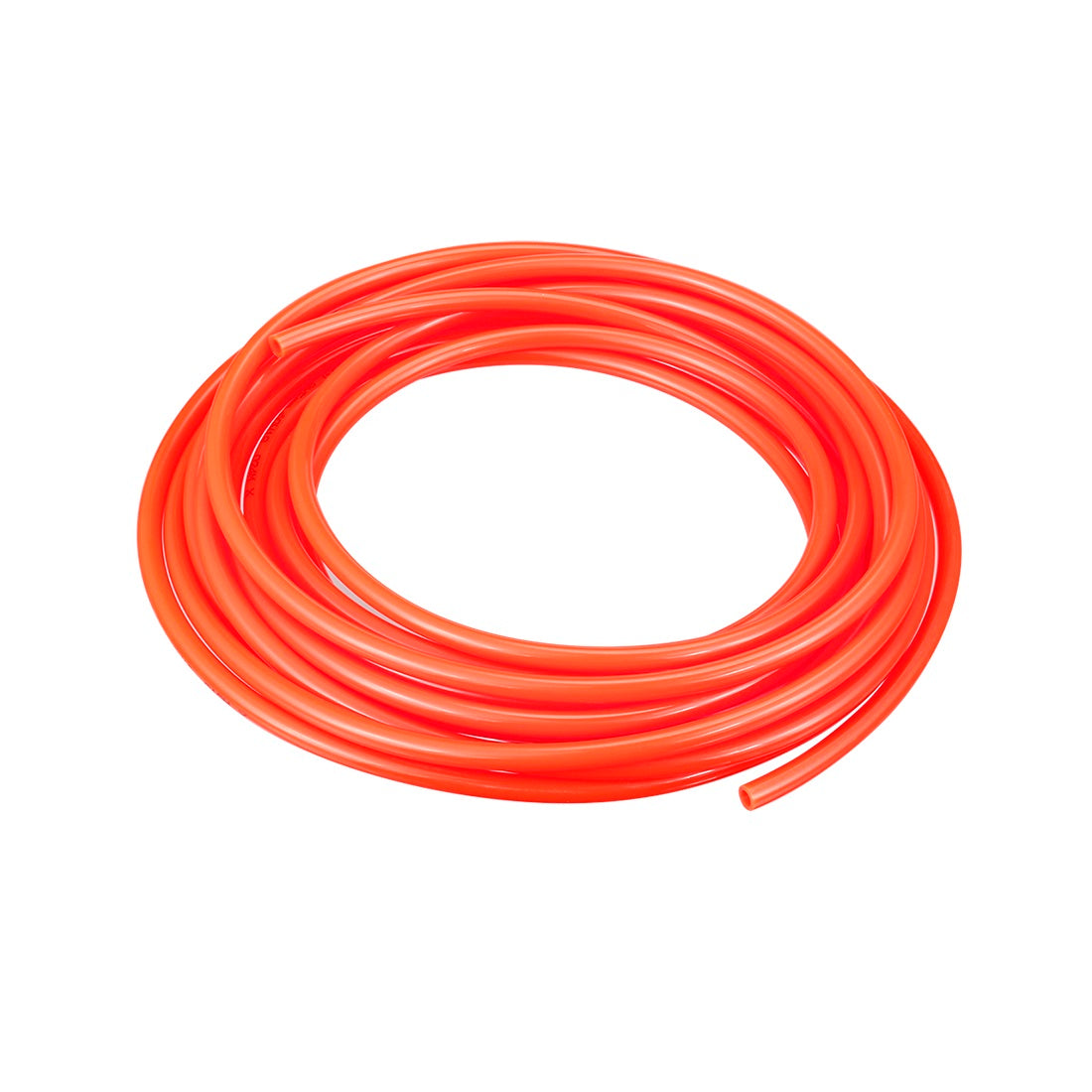

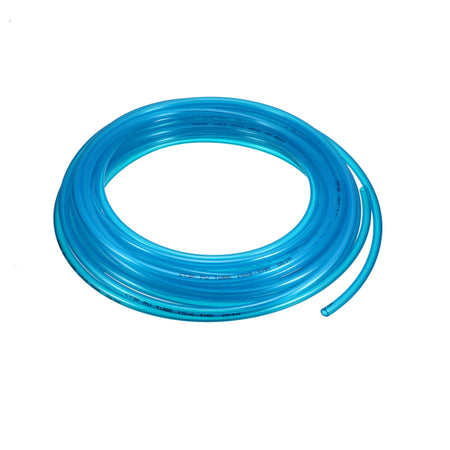

- Color Codes : (BU) blue, (R) Red, (CB) Clear Blue, (B) Black, (C) Transparent (Clear)
- Using flexible has high elasticity to restore memory effect.
- Excellent flexibility, high-pressure resistance, wear resistance, and tear resistance.

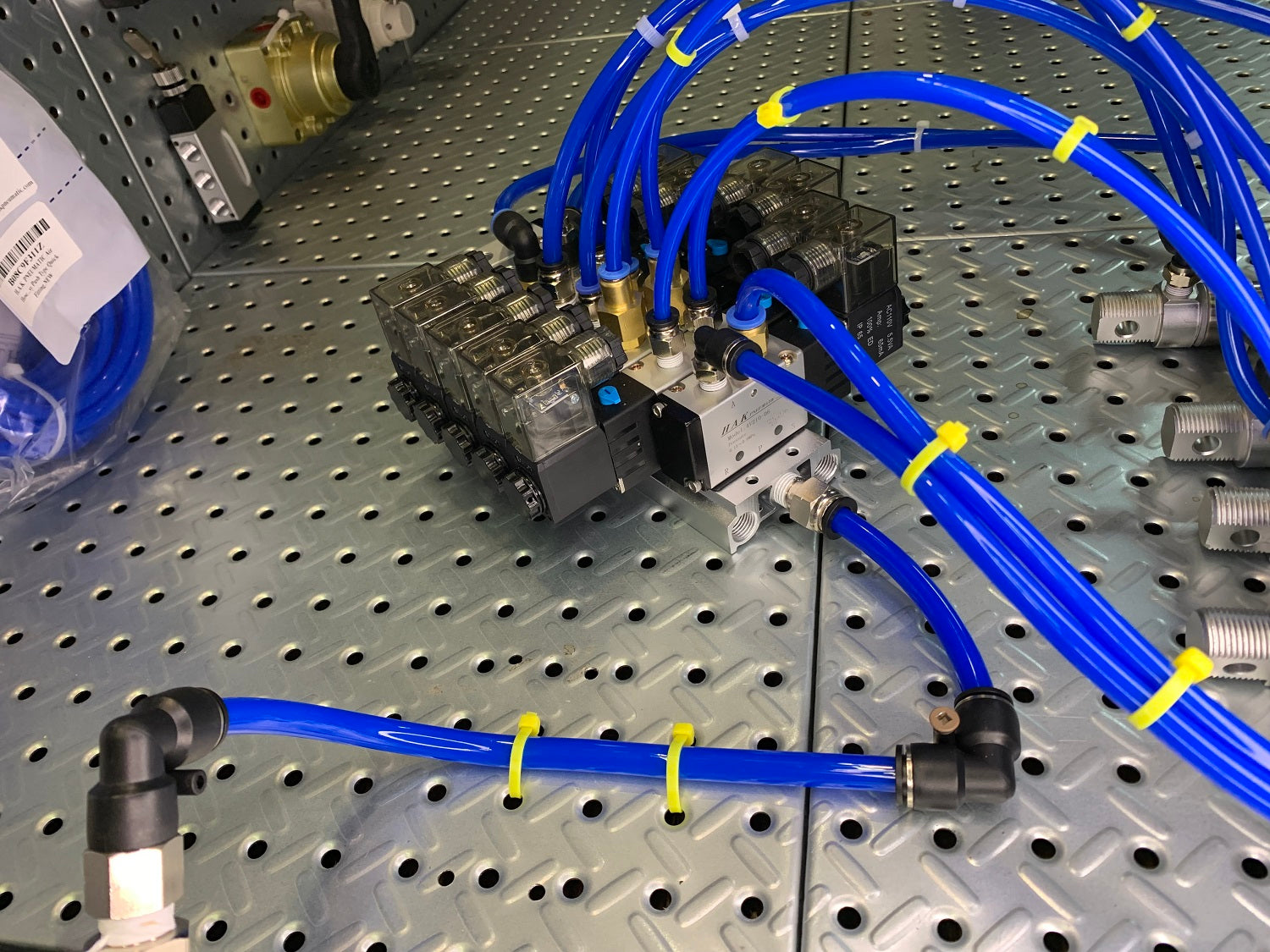

- Use range: Pneumatic tools, Instruments, mechanical gas pipeline
- Laboratory automation equipment, General industrial water, and gardening.
Specification
| Working Medium | Air |
|---|---|
| Working Pressure | 0～ 140 PSI |
| Ambient Temperature | -15 ~ 60C |
Dimensions & Available Colors
| Model | O.D. | ID | Thikness | MIN. Bend Radus at 30C (Inch) | MIN. Burst Pressure Bar at 20C (Bar) | Max. Working Pressure at 20C (Bar) | Available Colors |
|---|---|---|---|---|---|---|---|
| PU 1/8'' x 0.08'' | 1/8" (3.175mm) | 0.08" (2.032mm) | 0.0224" | 0.393" | 30 | 10 | B / C |
| PU 5/32" X 0.1" | 5/32" (3.96mm) | 0.1" (2.54mm) | 0.0279" | 0.393" | 30 | 10 | B / BU / C / CB / R |
| PU 3/16" X 0.13" | 3/16" (4.76mm) | 0.13" (3.302mm) | 0.0287" | 0.393" | 30 | 10 | BU |
| PU 1/4" X 0.16" | 1/4" (6.35mm) | 0.16" (4.15mm) | 0.0433" | 1.18" | 30 | 10 | B / BU / C / CB / R |
| PU 5/16" X 0.2" | 5/16" (7.93mm) | 0.2" (5mm) | 0.05771" | 1.37" | 30 | 10 | B / BU / C / CB / R |
| PU 3/8" X 0.24" | 3/8" (9.52mm) | 0.24" (5.99mm) | 0.0695" | 2.36" | 22 | 8 | B / BU / C / CB / R |
| PU 1/2" X 0.33" | 1/2" (12.7mm) | 0.33" (8.5mm) | 0.0827" | 2.55" | 24 | 8 | B / BU / C / CB / R |
