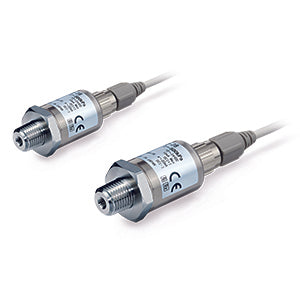

PSE570-L2, Remote IO-Link Pressure Sensor for General Fluids, Enhanced, IP65
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
PSE570 remote pressure sensors offer positive pressure ranges from 500 kPa to 10 MPa, as well as a compound range of -100 to 100kPa. Enhancements include increased proof pressures and a higher withstand voltage for improved durability in unpredictable conditions. A nickel-plated C3604 brass port and ceramic sensor impart compatibility with a wide range of liquids and gases. These models feature IO-Link or two switch outputs. IO-Link provides measured pressure values, device information and status, and report of any cable break when connected through any IO-Link master. Switch outputs respond to a preselected set point and hysteresis value with an ON / normal or OFF / reversed output signal. Accuracy is ±1% full scale for pressure below 1 MPa and ±2.5% for higher ranges. PSE570 sensors are CE and RoHS compliant, with an IP65 enclosure rating.
- Remote high pressure sensor with enhanced durability for liquid or gas
- Power supply requirement: 12 to 24 VDC
- IO-Link or 2 NPN / PNP open collector outputs
- Accuracy: ±1% F.S. (compound, 500 kPa, 1 MPa); ±2.5% F.S. (2, 5,or 10 MPa)
- Repeatability: ±0.2% F.S. (compound, 500 kPa, 1 MPa); ±0.5% F.S. (2, 5, or 10 MPa)
- Port sizes: 1/8 or 1/4 Rc male (incl. M5 female)
