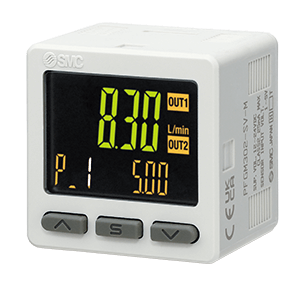

PFGM3, Digital Flow Monitor, IP40, for PF2M7 Sensors

PFGM3 is a sensor monitor optimized for the low to mid-range flows of the PF2M7 flow sensors.  The monitor features a 3-screen 3-color display with digital and optional analog outputs to view sensor values at a distance from the installation point.  View the sensor's measured value in the primary screen while viewing a variety of secondary data in the sub-screens, such as the switch set point value or a peak or bottom value.  Alternately, assign a text description for the sensor's line or location.  Additional functions are available for power saving, security, copying settings external input and more.  PFGM3 is IP40 rated, RoHS and CE compliant.

8 selectable flow ranges (units selectable)

Analog input, sensor (DC): 1-5V or 4-20mA

Analog output, monitor (DC): 0-10V, 1-5V or 4-20mA

Switch output modes: Hysteresis, window comparator, accumulation set point, accumulation pulse, error, and OFF

Display accuracy: ±0.5% F.S.

Repeatability: ±0.1% F.S.
