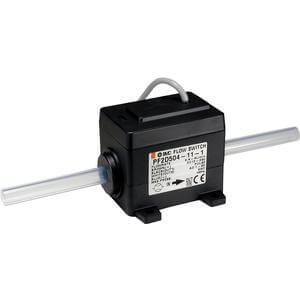

PF2D5, Digital Flow Sensor for DI Water or Chemicals, Remote, IP65, 0.4-40 Lpm
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
PF2D5 is a remote flow sensor for deionized water and liquids non-reactive with fluoropolymer. This sensor employs the Karman vortex principle for detection. PF2D5 can be paired with a PF2D200 or PF2D300 remote monitor to display instantaneous or accumulated flow values. An optional analog output is also available. PF2D5 is IP65 rated and CE and RoHS compliant.
- Flow ranges (lpm): 0.4-4, 1.8-20, 4-40
- Port sizes (Rc, NPT, G): 3/8, 1/2, 3/4 (flow range dependent)
- Temperature rating: 0-90¡C
- Output options: 1-5V, 4-20mA
- Accuracy: ±2.5% F.S.
- Repeatability: ±1% F.S.
