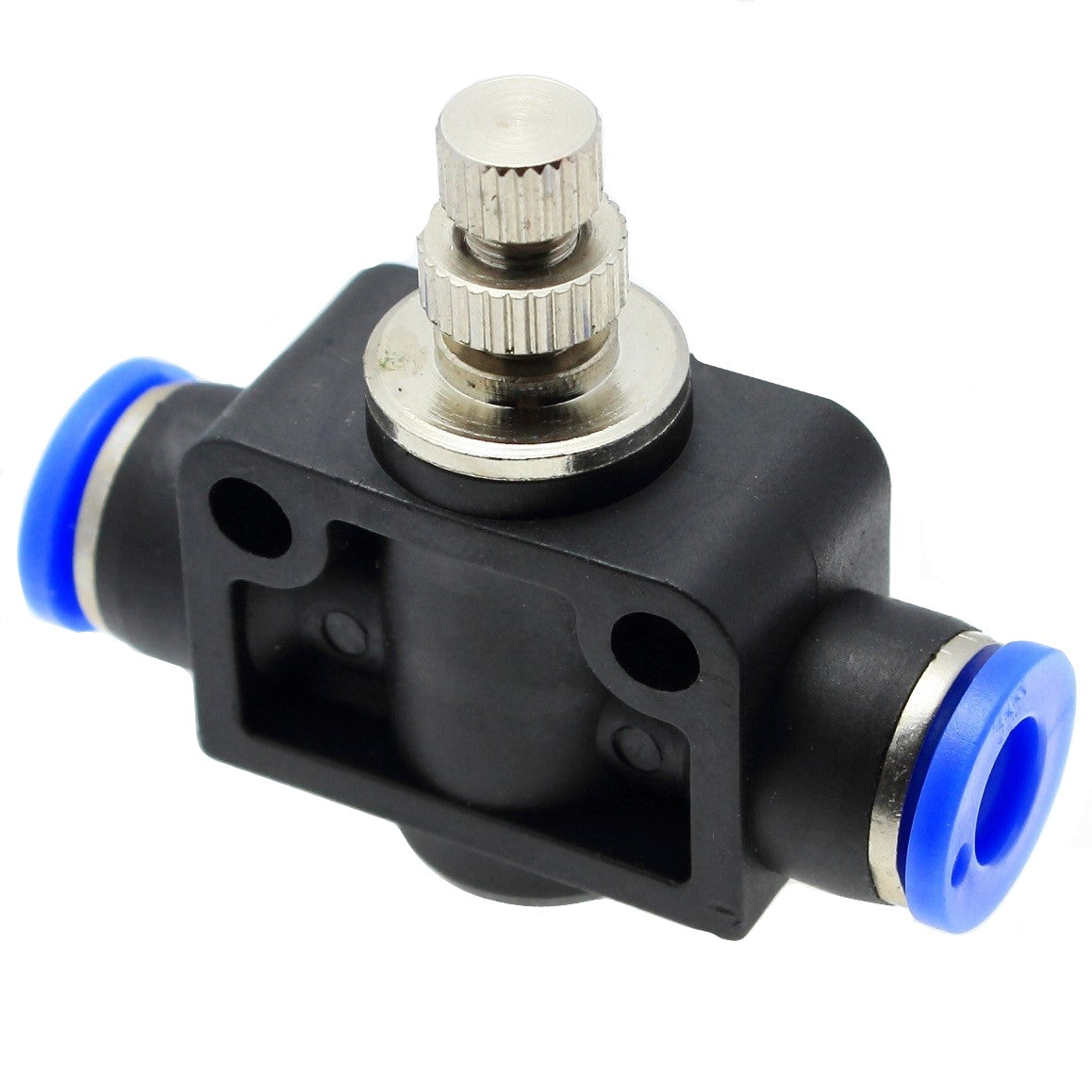

HAK Pneumatic PA SERIES Push to Connect Inline Speed Control – Metric Tube
Regular price
$5.70
✅ In Stock – Ready to Ship From Canada
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
PA series flow control valve / speed controller for metric and inch size tube, NPT connection thread.
HAK Pneumatic speed controller valve capable of adjusting the speed or the flow rate of compressed air.
The speed controller bodies can be rotated after installation to allow for variation in piping direction. Composite right angle flow control-out valves (pneumatic fittings – meter-out speed controllers) adjust the speed for air flow from thread to tubing.
Construction/Specification
| Fluid | Air, Vacuum |
|---|---|
| Operating Pressure | 0～145 PSI |
| Max Pressure | 174 PSI |
| Operating Temperature | 5～60℃ |
| Applicable Tube | PU Polyurethane and Nylon |
Dimensions
| Item Number | Tube O.D. | Tube O.D. |
|---|---|---|
| PA-04mm | 4 | 4 |
| PA-06mm | 6 | 6 |
| PA-08mm | 8 | 8 |
| PA-10mm | 10 | 10 |
| PA-12mm | 12 | 12 |
Learn More: Assembly Instructions
