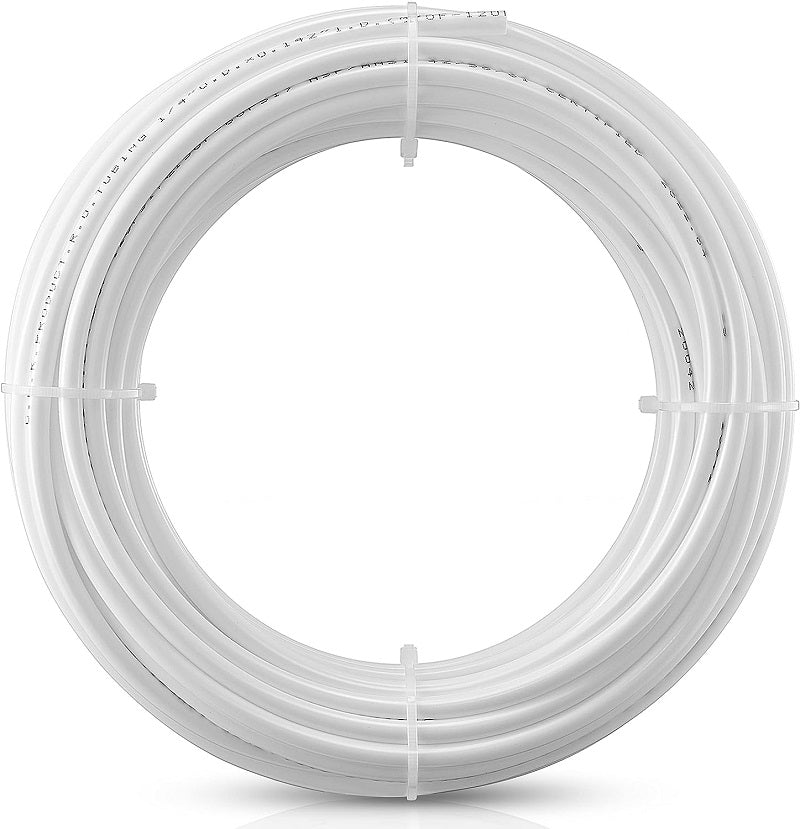

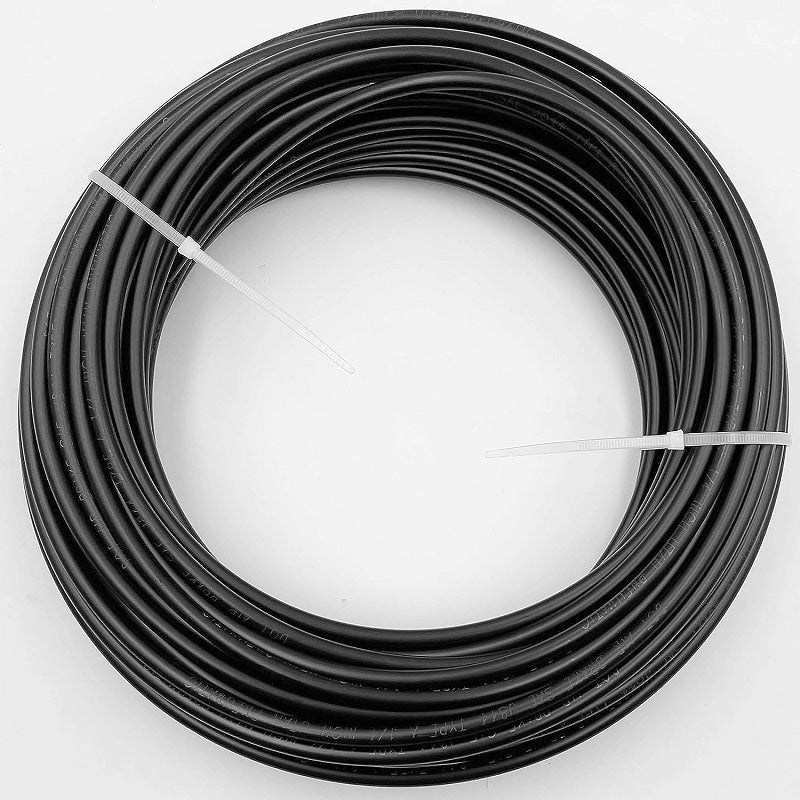

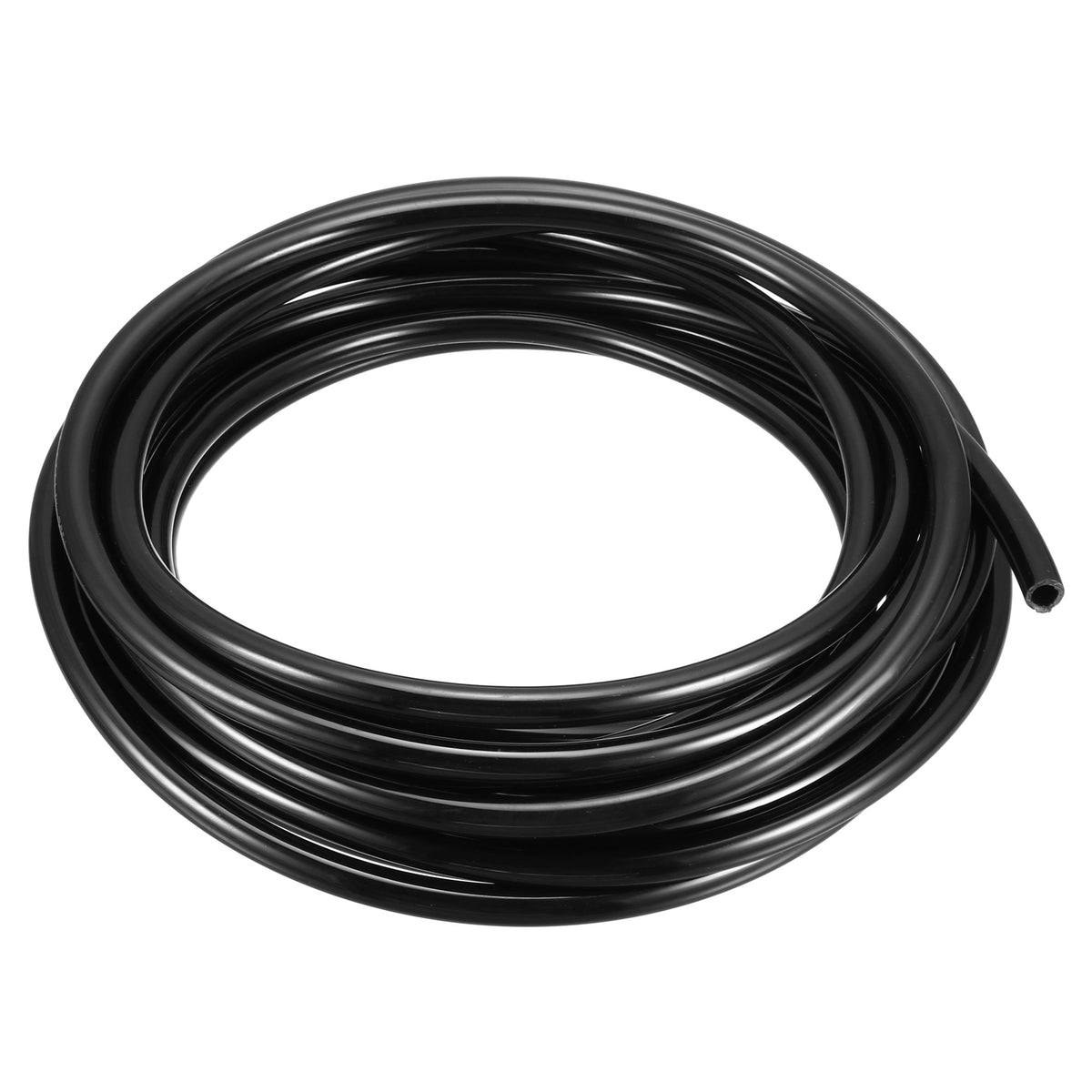

HAK Pneumatic PA (Nylon) Air Tube Metric Size 100 feet
Regular price
$29.34
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Description
- Made of quality material, and lightweight, tough, kink-resistant tubing, it is ideal to use with push-to-connect Fittings.
- Compression-resistance Working pressure 28in.Hg ~ 330 PSI / Working tempreture -40 ~ 248 F ( -40 ~ 120 °C )
- Material: Nylon 12 (PA)
- Color: blue, Natural, Black,
- Using flexible has high elasticity to restore memory effect.
- Excellent flexibility, high-pressure resistance, wear resistance, and tear resistance.
- Use range: Pneumatic tools, Instruments, mechanical gas pipeline
- Laboratory automation equipment, General industrial water, and gardening.
Specification
| Working Medium | Air |
|---|---|
| Working Pressure | 28in.Hg ~ 330 PSI |
| Ambient Temperature | -40 ~ 248 F ( -40 ~ 120 °C ) |
Dimensions
| Item Number | O.D. mm | ID mm | Wall Thickness mm | Available Colors |
|---|---|---|---|---|
| PA-04(Color)-100F | 4mm | 2.5mm | 0.75mm | N / B |
| PA-06(Color)-100F | 6mm | 4mm | 1.0mm | N / B |
| PA-08(Color)-100F | 8mm | 6mm | 2mm | N / B |
| PA-10(Color)-100F | 10mm | 8mm | 2mm | N / B |
| PA-12(Color)-100F | 12mm | 10mm | 2mm | N / B |
