NCM, Double Acting, Single Rod, Temperature Resistant Options
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

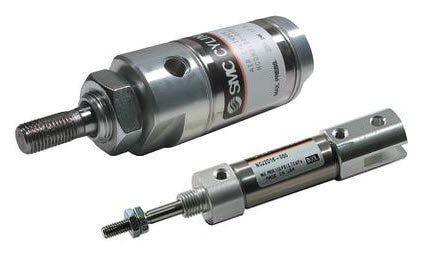

Series NCM stainless steel cylinder offers space savings, high performance, and interchangeability with other stainless steel cylinders. A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes. The NCM is available in 3 mounting styles (front nose, double end, and rear pivot).
- Double acting single rod
- Bore sizes (inch): 3/4, 7/8, 1 1/16,1 1/4, 1 1/2
- Mounts: nose, rear, double end
- Low temperature option (XB7) temperature range -22¡F to 158¡F
- High temperature option (XB6) temperature range -4¡F to 300¡F
