HAK Pneumatic (3 WAY / 3 PORT / 2 POSITION) Mechanical Valve with Detent Toggle Switch NPT 1/4”. (MPV 522)
✅ In Stock – Ready to Ship From Canada
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Description
Pneumatic Mechanical Valve with Detent Toggle Switch Valve Type: 3 Port 2 Position.* A High-Quality Valve body is made of Aluminum material, with long-serving life; seals initially imported from Japan.* The Anti-friction seal is added at both ends of the valve spool to make the valve spool more stable during the switching process and increase the valve lifetime.* This is a four-way, air-pilot valve with a spool design requiring an input pressure supplied to port P to actuate. The valve will not actuate when no pressure is applied.* This type of valve is designed for AIR FLOW ONLY. The use of filtered lubricated air will prolong the life of the valve & its internal components.
Specification

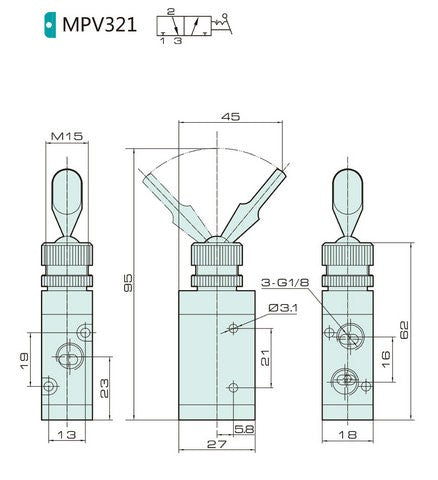

| Item Number | MPV321 |
|---|---|
| Working Medium | 40 Micron Filtered Air |
| Port Size | 1/4" NPT |
| Effective Cross Section Area | 10 mm 2 (CV = 0.56) |
| Working-pressure | 0～0.8 MPa |
| Working Temperature | -20～70℃ |
