SMC

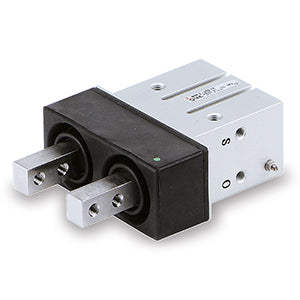

MHK, Air Gripper, Wedge Cam Operated Slide Guide

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The series MHK2 grippers utilize a wedge cam design to minimize their overall size, allow no lateral vibration along stroke direction once the workpiece is held, while retaining a high holding force. Available in single acting (N.C., N.O.) and double acting as well as with a long stroke option.

  • Bore sizes: 12, 16, 20, 25 mm
  • Built-in adjustment needle for finger speed
  • Dust covers: chloroprene rubber, fluororubber, silicone rubber
  • High repeatability: ±0.01 mm
  • Auto switch capable
  • Option for NSF-H1, food grade lubricant
Download PDF
