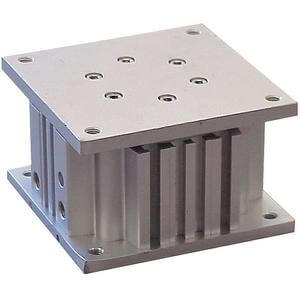

MGF, Low Profile Guide Table
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The MGF low profile guide table integrates a compact cylinder to a large diameter concentric guide sleeve to handle loads applied from any direction providing equal eccentric load resistance through 360¡. Using the guide sleeve instead of guide rods reduces the unit's weight by 15% and eliminates eccentric load capacity variances caused by load orientation. An internal non-rotating pin has been added to prevent rotation of the top plate.
- Bore sizes: 40, 63, 100 mm
- Stroke lengths: 30, 50, 75, 100
- Non-rotating accuracy +/-0.08¡ for 40 mm bore
- Non-rotating accuracy +/-0.06¡ for 63 mm bore
- Non-rotating accuracy +/-0.05¡ for 100 mm bore
- Auto switch capable
