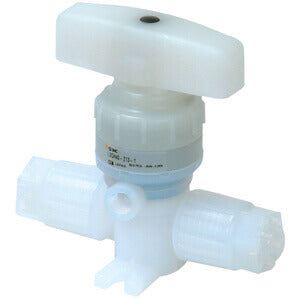

LVQH, 2 Port Chemical Valve, Integral Fitting Type, Manual Operation
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Series LVQ is a 2 port chemical valve with a non-metallic exterior. A high density PVDF housing offers increased chemical resistance and the special diaphragm construction insures gentle opening and closing preventing the formation of micro-bubbles. The LVQ guide ring eliminates lateral motion of the poppet, which reduces internal leakage.
- 2 port chemical shut-off valve, manual operation
- Non-metallic exterior
- Tube O.D.: 1/8, 1/4, 3/8, 1/2, 3/4, 1, ¿3, ¿4, ¿6, ¿8, ¿10, ¿12, ¿19, ¿25
- Orifice:¿4, ¿8, ¿10, ¿16, ¿22
- Cv factor: .35 to 8.0
