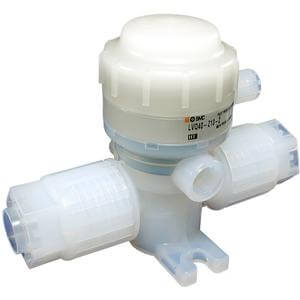

LVQ-Z, 2 Port Chemical Valve, Flare Integral Fitting Type (LQ3), Air Operated
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Series LVQ is a 2 port chemical valve with a non-metallic exterior. A high density PVDF housing offers increased chemical resistance and the special diaphragm construction insures gentle opening and closing preventing the formation of micro-bubbles. The LVQ guide ring eliminates lateral motion of the poppet, which reduces internal leakage.
- 2 port chemical valve
- Non-metallic exterior
- LQ3 integral fitting
- Tube O.D.: 1/4", 3/8", 1/2", 3/4", 1", ¿3, ¿4, ¿6, ¿8, ¿10, ¿12, ¿19, ¿25
- Orifice: ¿4, ¿8, ¿10, ¿16, ¿22
- Cv factor: .35 to 8.0
