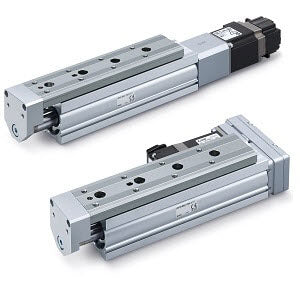

The LESYH is a high precision variation of the LESH high rigidity slide table. This actuator improves positioning repeatability to ±0.01 and increases vertical work load dramatically compared to the LESH. The external motor can be mounted inline with the table, or in parallel to the left or right. This version includes and AC servo motor with incremental or absolute encoder. Optional drivers include pulse input and various communication protocols including Ethernet.
- Body size: 16, 25
- Strokes: 50, 100, 150mm
- Maximum work load: 12 kg (horizontal), 20 kg (vertical)
- Maximum pushing force: 385 N
- Maximum speed: 400 mm/s
- Positioning repeatability: ±0.01mm
- Encoder resolution: 17-bit (S motors), 22-bit (T motors), 20-bit (V motors)
