LESH, Electric Slide Table, High Rigidity Type

Use this text to encourage communication or promote sharing on social networks.

You can also add links

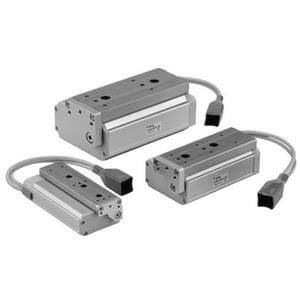

The LESH electric actuator combines a motor and slide screw drive, worktable, and linear guide in compact body. The machined table is more rigid than the LES formed table, enabling higher horizontal loads and improved deflection from offset loading. Body orientations include basic, symmetrical, and inline mounted motor.

  • Body sizes: 8, 16, 25
  • Strokes: 50, 75, 100, 150 (availability dependent on size)
  • Positioning repeatability: ±0.05
  • Motor can be mounted internally with a right or left table, or in-line
  • Motor types: high load step motor or high speed servo motor
