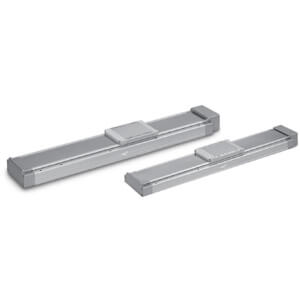

LEJS, Electric Actuator, High Rigidity Slider, Ball Screw Drive, Motorless

Use this text to encourage communication or promote sharing on social networks.

You can also add links

The LEJS is available in a motorless type, permitting the mounting of an AC servo motor other than the standard chosen by SMC.  Shaft coupling and mounting patterns are compatible with 8 servo motor series from 5 manufacturers.  Manufacturers include Mitsubishi, Yaskawa, Sanyo Denki, Omron and Panasonic

  • Body sizes: 40 (100W), 63 (200W), 100 (750W)
  • Maximum workload: 55 kg (size 40), 85 kg (size 63), or 400 kg (size 100)
  • Maximum speed: 2300 mm/s (size, lead, and stroke dependent)
  • Maximum acceleration:: 20,000 mm/s_ (40, 63) 9,800 mm/s_ (100)
  • Positioning repeatability: ±0.01mm (size and lead dependent)
  • Stroke range: 200 to 1500mm in 100mm increments
