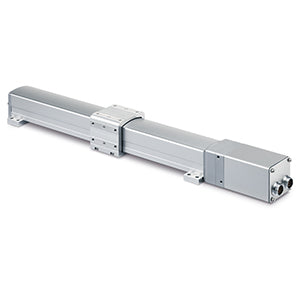

LEFSW Slider, IP65 Dust and Water Resistant, Battery-less Absolute Encoder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
LEFSW is a ballscrew slider designed with IP65 equivalent features. The loading table is mounted to the drive underneath the body to limit ingress of liquid and particulate contamination falling from above. Wear resistant seal bands along the stroke path also block dust and water from entering. Supplying air pressure to the purge port creates another barrier to foreign matter and humidity. The motor is enclosed by a dust and splashproof sealed cover. Threaded metal connectors avoid contaminant entry while increasing the strength and rigidity of the electrical connection. The internal ballscrew, rail guide and other metal parts are treated for corrosion resistance, while moving parts are supplied with water-resistant grease. Brackets are available for foot, ceiling or wall mounting.
- IP65 equivalent enclosure
- Sealed motor cover with metal cable connectors
- Battery-less absolute encoder holds position data without power
- Available size: 16, 25, 32, 40
- Max stroke length: 1200mm (size 40)
- Max work load: 65 kg (size 40)
