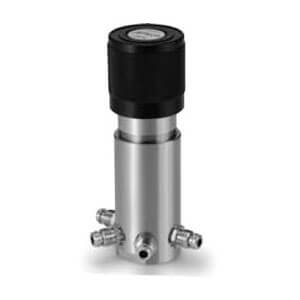

KT10, Single Stage Regulator, Welded Connection, Low Flow
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The KT10 and KT12 series are regulators used in gas delivery systems to reduce the pressure to a lower delivery (outlet) pressure. These regulators are available with a self-relieving (venting) option, which vents process gas through the regulator cap directly into the atmosphere, or a non-relieving (non-venting) option, which must be used in combination with hazardous gases.
- Inlet pressure: Max. 4000 psig (27.6 MPa)
- Delivery pressure: Max. 4000 psig (27.6 MPa)
- Body material: 316L SS
- Welded Connection (Face seal fitting)
- Self relieving or non-relieving available
- Piston sensing element
