KQG2-F, Stainless Steel 316, (FDA Compliant) One-touch Fitting, Inch Size (UNF, NPT Threads)
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

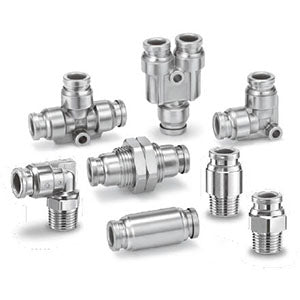

KQG2-F series are special fittings intended for the food industry application. With their stainless steel 316 construction and gasket seal made of special FDA-compliant FKM rubber material, these fittings offer high anti corrosion performance, and can be used with numerous piping materials including FEP, PFA, soft and regular nylon, polyurethane, and polyolefin. With different body type variations available, the KQG2-F fittings can accommodate tube sizes from 3.2mm to 16mm, and ¿1/8" to ¿ 1/2".
- For food industry
- Stainless steel 316 metric size one-touch fittings
- FDA compliant
- Applicable tubing: FEP, PFA, Nylon, Soft nylon, Polyurethane, Polyolefin
- Fluid temperature: -5 to 150¡C
- FDA compliant rubber parts
- NSF H1-compliant paraffin grease
