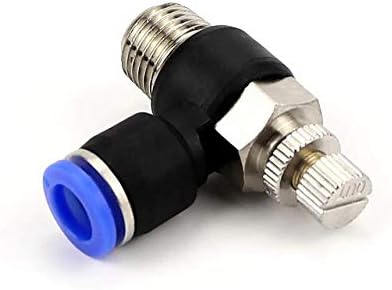

HAK Pneumatic JSE Push to Connect Speed Control Meter Out Imperial Tube x BSPP (G) Male
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
PUSH IN FITTINGS, PNEUMATIC PUSH IN FITTINGS.
The push in fittings (also called pneumatic push in fittings, push to connect fittings and one touch fittings in some locations).Inside the push in fittings, stainless steel tube gripping claw, collar, and release sleeve (collet) are assembled to offer a quick hold and release mechanism to provide a low disconnection force for easy removal of the tubing with no tools necessary.
PUSH IN FITTINGS WITH METRIC AND INCH SIZE TUBE, BSPP (G) CONNECTION THREAD.
HAK Pneumatic BSPP (G) thread push in fittings cover a complete line of types, model, and sizes to satisfy various tube demands.
HAK Pneumatic push to connect fittings are designed for use with soft and stiff tubing, such as nylon and polyethylene tubing.
HAK Pneumatic push in fittings are designed for use with nylon and polyethylene tubing that accommodate metric tubing O.D. ranging from 4mm to 14mm and accommodate inch tubing from 5/32” to 1/2”. Thread sizes range from G1/8” to G 1/2”.
Construction/Specification
| Fluid | Air, Vacuum |
|---|---|
| Operating Pressure | 0～145 PSI |
| Max Pressure | 174 PSI |
| Operating Temperature | 5～60℃ |
| Applicable Tube | PU Polyurethane and Nylon |
Sizing Information
| Item Number | Tube O.D. | Thread |
|---|---|---|
| JSE 5/32"-G1/8" | 5/32" | 1/8" BSPP |
| JSE 5/32"-G1/4" | 5/32" | 1/4" BSPP |
| JSE 1/4"-G1/8" | 1/4" | 1/8" BSPP |
| JSE 1/4"-G1/4" | 1/4" | 1/4" BSPP |
| JSE 1/4"-G3/8" | 1/4" | 3/8" BSPP |
| JSE 5/16"-G1/8" | 5/16" | 1/8" BSPP |
| JSE 5/16"-G1/4" | 5/16" | 1/4" BSPP |
| JSE 5/16"-G3/8" | 5/16" | 3/8" BSPP |
| JSE 5/16"-G1/2" | 5/16" | 1/2" BSPP |
| JSE 3/8"-G1/4" | 3/8" | 1/4" BSPP |
| JSE 3/8"-G3/8" | 3/8" | 3/8" BSPP |
| JSE 3/8"-G1/2" | 3/8" | 1/2" BSPP |
| JSE 1/2"-G1/4" | 1/2" | 1/4" BSPP |
| JSE 1/2"-G3/8" | 1/2" | 3/8" BSPP |
| JSE 1/2"-G1/2" | 1/2" | 1/2" BSPP |
Learn More: Assembly Instructions
