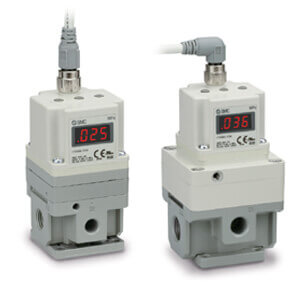

ITV1000/2000/3000, Electro-Pneumatic Regulator

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Series ITV electro-pneumatic and electronic vacuum regulators control air/vacuum pressure steplessly in proportion to an electric signal. The units are compact, lightweight, and include an easy to read LED display.  Input signals can be analog current or voltage, 4 or 16 point presets, or a range of communication protocols including CC-Link, DeviceNetª, PROFIBUS, RS-232C or I/O-Link.  EtherNet/IPª, and PROFINET are available as well.  See the separate configurators on this site.  Monitor output is available as an analog or switch signal.  ITV regulators are IP65 equivalent.

  • Controls air pressure in proportion to an electric signal
  • Available in MPa, kgf/cm_, bar, PSI, and kPa units
  • Pressure range of -80kPa to 0.9MPa
  • Available port sizes 1/4, 3/8 and 1/2
  • Mounting bracket option
  • Made to order options available for expanded features, including analog 4-20mA sourcing type, manifold mountable, high speed response, and others.
