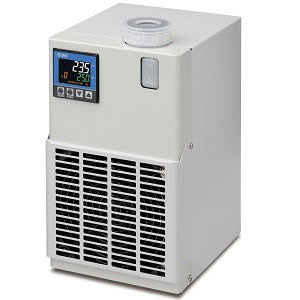

INR-244-832, Compact Thermoelectric Chiller, Low Temperature, Air Cooled
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The INR-244-832 compact chiller use a Peltier thermoelectric device, rather than a refrigeration circuit, to extract heat from the cooling loop. This 150W capacity chiller has a next-generation design with a footprint 80% smaller than the HEC-A chiller with similar capacity. Volume is 88% less, and weight is 70% lighter as well. Note however that capacity is lower to accommodate the lower set point. With its compact size and 45 dBA low-noise operation, its presence is non-intrusive and compatible in any lab space. The chiller is self-contained with Peltier regulation, fan cooled heat exchanger, pump, coolant tank and power supply. The dustproof filter is replaceable. The user interface includes a 2-color, 2-line display with 11-segment alpha-numeric characters for easy readabiltiy, as well as 8 LEDs for detailed status at a glance. 4 input buttons allow access to set points and data screens.
- Cooling capacity: 150W
- Heating capacity: 380W
- Dimensions: 140mm x 160mm x 240mm
- Temperature range setting: 4 to 60¡C
- Temperature stability: ±0.03¡C or better depending on load stability
- Power supply requirement: 24 VDC ±10%
- Circulating fluid: Tap water or ethylene glycol solution (20% or less)
- Standards: CE/UKCA, UL, RoHS
