HRZC010, SEMI Standard Double Inverter Chiller, CO2 Refrigerant

Use this text to encourage communication or promote sharing on social networks.

You can also add links

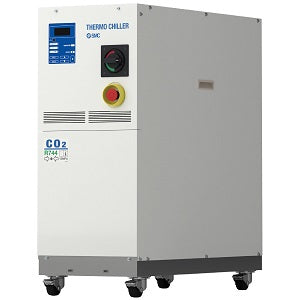

HRZC010 is a water-cooled recirculating chiller for high technology sectors which employs CO2 as a refrigerant.  CO2 is the benchmark refrigerant with a GWP of 1, complying with current and future US and EU regulations with the least environmental impact.  CO2 is non-toxic, non-flammable, and enables air transport of the chiller.  DC inverters on the compressor and pump save operating energy.  Front panel includes ventilation intake, emergency shutoff switch, LCD operation panel, and 30A breaker with handle.  Rear panel includes water and circulating fluid connections, drain and fluid fill ports, power connections and a ventilation exhaust fan.  Casters with brakes allow easy relocation as necessary.

  • Cooling capacity: 10kW
  • Circulating Fluid: Fluorinertª or GALDEN¨ (fluorinated); 60% ethylene glycol
  • Temperature range setting: -20 to 90¡C (see catalog for conditions)
  • Temperature stability: ±0.1¡C (fluctuating heat load); ±0.02¡C (stable heat load)
  • Power supply requirement: 3-phase 200 VAC (50Hz) or 3-phase 200~208 VAC (60Hz)
  • Standards: CE, UKCA, UL, RoHS, SEMI S2, S8, F47
