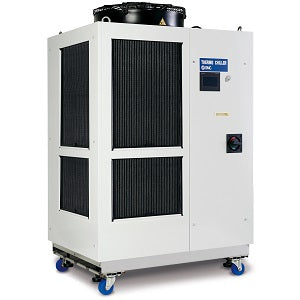

HRLF, Air Cooled Dual Channel Chiller for Lasers, Low GWP Refrigerant
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The HRLF is a temperature control device featuring two independent cooling channels in one package. This thermo chiller is designed to cool the optical head and oscillator of a laser processing system. Considerable space savings can be realized compared to a two chiller solution. All operations can be managed from a single touch panel. The heating function uses waste heat from the refrigerant discharge instead of a separate electric heater to improve efficiency and reliability. The HRL is copper free and suitable for DI water, including a DI filter and electrical conductivity control kit. Additional standard features include a 5µm particle filter, earth leakage breaker, and casters for mobility.
- Cooling capacity: CH1= 19kW (oscillator); CH2= 1kW (optical system)
- Power Supply: 380-415VAC (50/60 Hz) or 460-480VAC (60 Hz), 3-phase
- Temperature set range: CH1 = 5 to 35¡C, CH2 = 10 to 40¡C
- Temperature stability: CH1 = ±0.1¡C, CH2 = ±0.5¡C
- Refrigerant: R454C (meets EPA and CARB GWP 2026 requirements)
- Communication: contact/analog I/O; Serial RS-232C/RS-485; Ethernet Modbus
