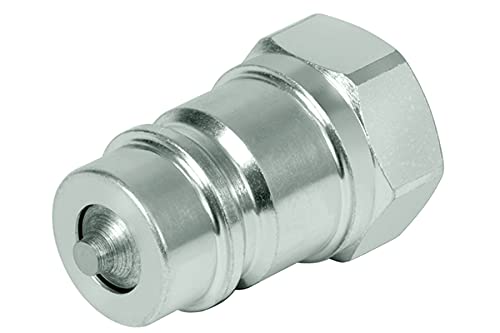

HAK Hydraulic ISO 5675 Agricultural Nipple with 3/4" Female NPTF Pipe Thread(Ball Style)
✅ In Stock – Ready to Ship From Canada
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
ISO 5657 Series Hydraulic Couplers
HQC (ISO5675) Series Hydraulic Coupler: |
| 1. Ball valves are available for rugged dependability in heavy-duty hydraulic applications within the rated working pressure. 2. Critical parts are hardened for durability. 3. Hard chrome alloy balls are used for valving. They are loaded onto the valve seat by springs. 4. The valve provides a metal-to-metal seal between the ball and coned seat. 5. A dependable ball-locking mechanism holds the mating halves together. 6. The socket and plug are precision-machined from solid bar stock. Compatible with PARKER 4000 Series and FASTER NV/NS Series. |
Specification:
| Body Sizes (Inch) | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| Rated Pressure (PSI) | 5000 | 4500 | 4500 | 4500 | 3625 |
| Rated Flow (GPM) | 3 | 6 | 12 | 28 | 50 |
| Temperature Range | -25°C ~ 125°C | ||||
| Standard Seal Material | NBR | ||||
|
ISO 5675 Ball Type Couplers |
|||||
| Couplers | Nipples | ||||
| Part No. | Body Size | Port Size (NPTF) | Part No. | Body size | Port Size (NPTF) |
| HQCS04-04 | 1/4" | 1/4" | HQCP04-04 | 1/4" | 1/4" |
| HQCS06-06 | 3/8" | 3/8" | HQCP06-06 | 3/8" | 3/8" |
| HQCS08-08 | 1/2" | 1/2" | HQCP08-08 | 1/2" | 1/2" |
| HQCS12-12 | 3/4" | 3/4" | HQCP12-12 | 3/4" | 3/4" |
| HQCS16-16 | 1" | 1" | HQCP16-16 | 1" | 1" |
