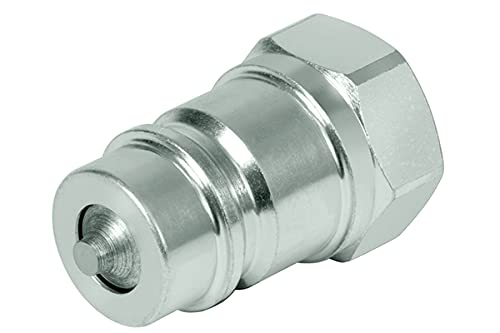

HAK Hydraulic ISO 5675 Agricultural Nipple with 1/4" Female NPTF Pipe Thread(Ball Style)

SKU: HQCP04-04
Regular price $3.96

✅ In Stock – Ready to Ship From Canada

Use this text to encourage communication or promote sharing on social networks.

You can also add links

ISO 5657 Series Hydraulic Couplers

HQC (ISO5675) Series Hydraulic Coupler:

1. Ball valves are available for rugged dependability in heavy-duty hydraulic applications within the rated working pressure.
2. Critical parts are hardened for durability.
3. Hard chrome alloy balls are used for valving. They are loaded on the valve seat by springs.
4. The valve provides a metal-to-metal seal between the ball and coned seat.
5. A dependable ball-locking mechanism holds the mating halves together.
6. The socket and plug are precision-machined from solid bar stock.
Compatible with PARKER 4000 Series and FASTER NV/NS Series.



Specification:

Body Sizes (Inch) 1/4" 3/8" 1/2" 3/4" 1"
Rated Pressure (PSI) 5000 4500 4500 4500 3625
Rated Flow (GPM) 3 6 12 28 50
Temperature Range -25°C ~ 125°C
Standard Seal Material NBR



ISO 5675 Ball Type Couplers

Couplers Nipples
Part No. Body Size Port Size (NPTF) Part No. Body size Port Size (NPTF)
HQCS04-04 1/4" 1/4" HQCP04-04 1/4" 1/4"
HQCS06-06 3/8" 3/8" HQCP06-06 3/8" 3/8"
HQCS08-08 1/2" 1/2" HQCP08-08 1/2" 1/2"
HQCS12-12 3/4" 3/4" HQCP12-12 3/4" 3/4"
HQCS16-16 1" 1" HQCP16-16 1" 1"
