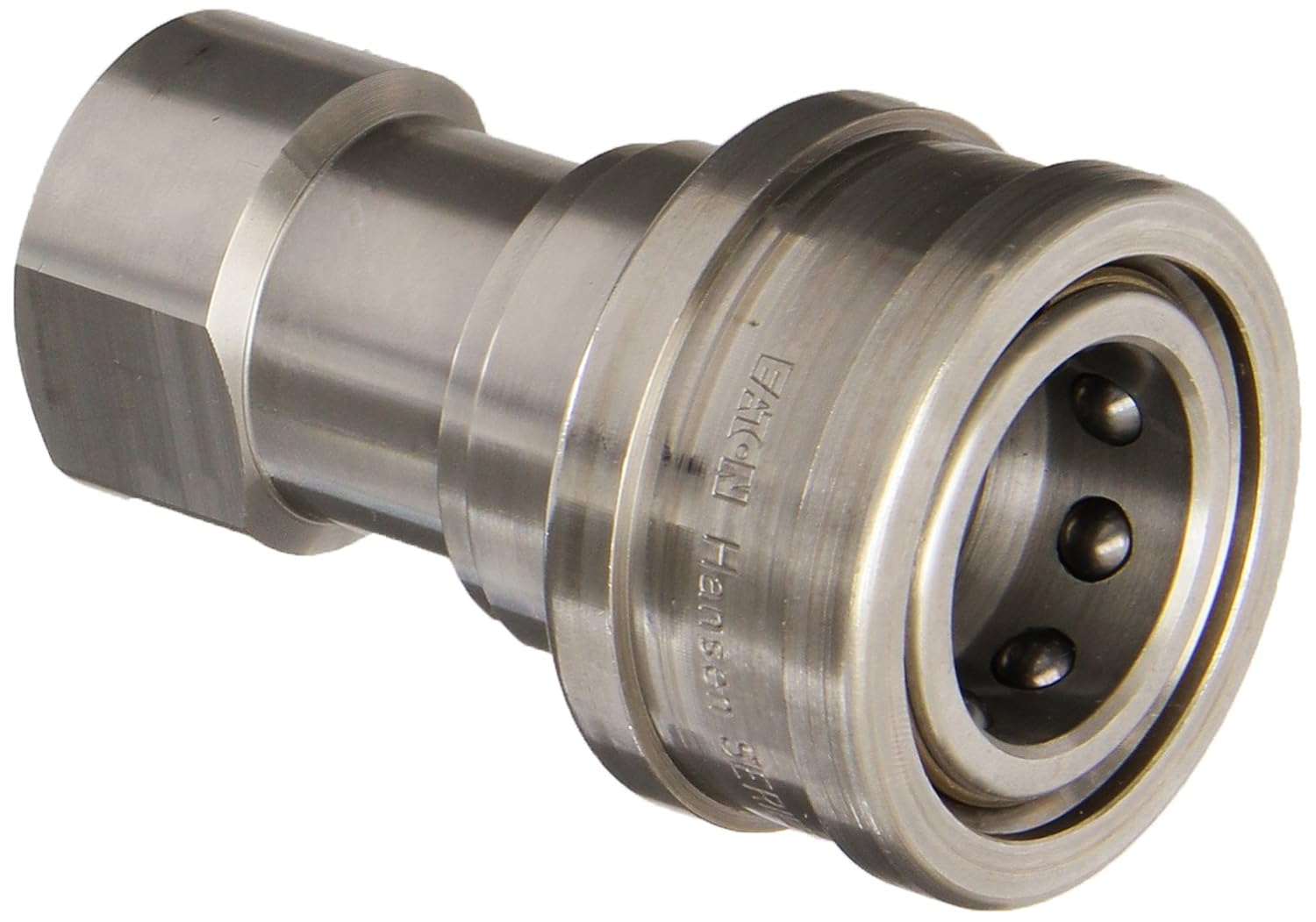

HAK Hydraulic ISO 7241-B Coupler with 1/2" Female NPTF Pipe Thread

SKU: HQBS08-08
Regular price $13.96

✅ In Stock – Ready to Ship From Canada

Use this text to encourage communication or promote sharing on social networks.

You can also add links

HQB (ISO7241B) Series Hydraulic Coupler:

1. Poppet valves are available to prevent uncoupled leakage.
2. Critical parts are hardened for durability.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision-machined from solid bar stock.
Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series, and HANSEN HK Series.

Specification:

Body Sizes (Inch) 1/4" 3/8" 1/2" 3/4" 1"
Rated Pressure (PSI) 6750 4500 5250 3625 4500
Rated Flow (GPM) 3 6 12 28 50
Temperature Range -25°C ~ 125°C
Standard Seal Material NBR
Couplers Nipples
Part No. Body Size Port Size (NPTF) Part No. Body size Port Size (NPTF)
HQBS04-04 1/4" 1/4" HQBP04-04 1/4" 1/4"
HQBS06-06 3/8" 3/8" HQBP06-06 3/8" 3/8"
HQBS08-08 1/2" 1/2" HQBP08-08 1/2" 1/2"
HQBS12-12 3/4" 3/4" HQBP12-12 3/4" 3/4"
HQBS16-16 1" 1" HQBP16-16 1" 1"
