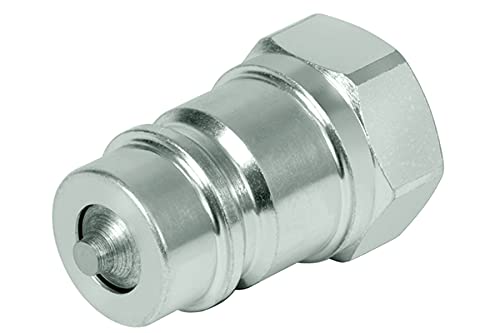

HAK Hydraulic ISO 7241-B Nipple with 1" Female NPTF Pipe Thread
✅ In Stock – Ready to Ship From Canada
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
HQB (ISO7241B) Series Hydraulic Coupler: |
| 1. Poppet valves are available to prevent uncoupled leakage. 2. Critical parts are hardened for durability. 3. Dependable ball-locking mechanism holds the mating halves together. 4. Socket and plug are precision-machined from solid bar stock. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series, and HANSEN HK Series. |
Specification:
| Body Sizes (Inch) | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| Rated Pressure (PSI) | 6750 | 4500 | 5250 | 3625 | 4500 |
| Rated Flow (GPM) | 3 | 6 | 12 | 28 | 50 |
| Temperature Range | -25°C ~ 125°C | ||||
| Standard Seal Material | NBR | ||||
| Couplers | Nipples | ||||
| Part No. | Body Size | Port Size (NPTF) | Part No. | Body size | Port Size (NPTF) |
| HQBS04-04 | 1/4" | 1/4" | HQBP04-04 | 1/4" | 1/4" |
| HQBS06-06 | 3/8" | 3/8" | HQBP06-06 | 3/8" | 3/8" |
| HQBS08-08 | 1/2" | 1/2" | HQBP08-08 | 1/2" | 1/2" |
| HQBS12-12 | 3/4" | 3/4" | HQBP12-12 | 3/4" | 3/4" |
| HQBS16-16 | 1" | 1" | HQBP16-16 | 1" | 1" |
