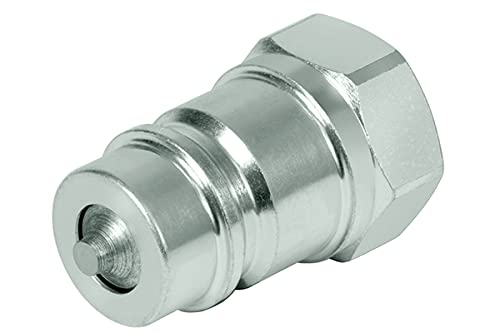

HAK Hydraulic ISO 7241-A Nipple with 1" Female NPTF Pipe Thread
✅ In Stock – Ready to Ship From Canada
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
HQA (ISO 7241-A) Series Hydraulic Coupler: |
| 1. Poppet valves are available to prevent uncoupled leakage. 2. Critical parts are hardened for durability. 3. Dependable ball-locking mechanism holds the mating halves together. 4. Socket and plug are precision-machined from solid bar stock. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series & HANSEN HA 15000 Series. |
Specification:
| Body Sizes (Inch) | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| Rated Pressure (PSI) | 5000 | 4500 | 4500 | 4500 | 3625 |
| Rated Flow (GPM) | 3 | 6 | 12 | 28 | 50 |
| Temperature Range | -25°C ~ 125°C | ||||
| Standard Seal Material | NBR | ||||
| Couplers | Nipples | ||||
| Part No. | Body Size | Port Size (NPTF) | Part No. | Body size | Port Size (NPTF) |
| HQAS04-04 | 1/4" | 1/4" | HQAP04-04 | 1/4" | 1/4" |
| HQAS06-06 | 3/8" | 3/8" | HQAP06-06 | 3/8" | 3/8" |
| HQAS08-08 | 1/2" | 1/2" | HQAP08-08 | 1/2" | 1/2" |
| HQAS12-12 | 3/4" | 3/4" | HQAP12-12 | 3/4" | 3/4" |
| HQAS16-16 | 1" | 1" | HQAP16-16 | 1" | 1" |
