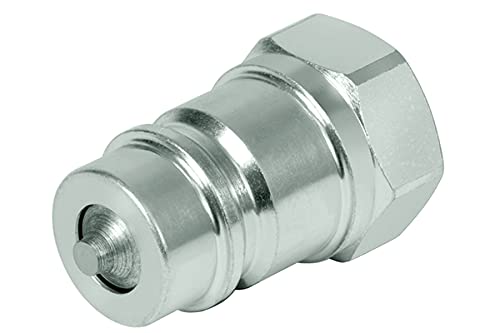

HAK Hydraulic ISO 7241-A Nipple with 1/4" Female NPTF Pipe Thread

SKU: HQAP04-04
Regular price $3.76

✅ In Stock – Ready to Ship From Canada

Use this text to encourage communication or promote sharing on social networks.

You can also add links

HQA (ISO 7241-A) Series Hydraulic Coupler:

1. Poppet valves are available to prevent uncoupled leakage.
2. Critical parts are hardened for durability.
3. Dependable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision-machined from solid bar stock.
Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series & HANSEN HA 15000 Series.

Specification:

Body Sizes (Inch) 1/4" 3/8" 1/2" 3/4" 1"
Rated Pressure (PSI) 5000 4500 4500 4500 3625
Rated Flow (GPM) 3 6 12 28 50
Temperature Range -25°C ~ 125°C
Standard Seal Material NBR
Couplers Nipples
Part No. Body Size Port Size (NPTF) Part No. Body size Port Size (NPTF)
HQAS04-04 1/4" 1/4" HQAP04-04 1/4" 1/4"
HQAS06-06 3/8" 3/8" HQAP06-06 3/8" 3/8"
HQAS08-08 1/2" 1/2" HQAP08-08 1/2" 1/2"
HQAS12-12 3/4" 3/4" HQAP12-12 3/4" 3/4"
HQAS16-16 1" 1" HQAP16-16 1" 1"
