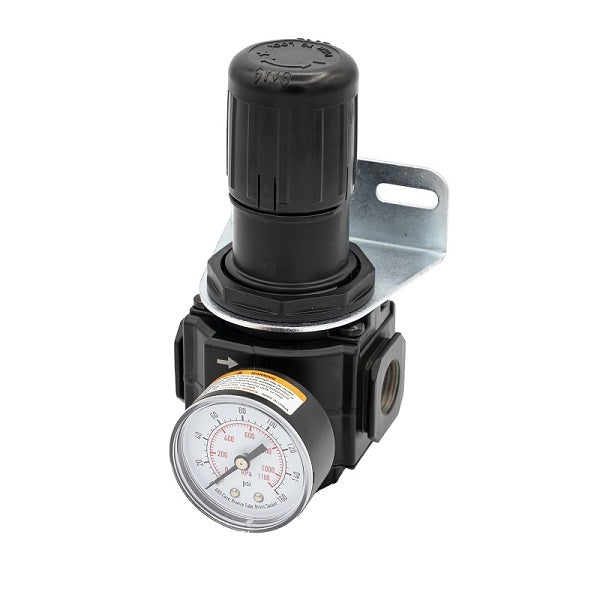

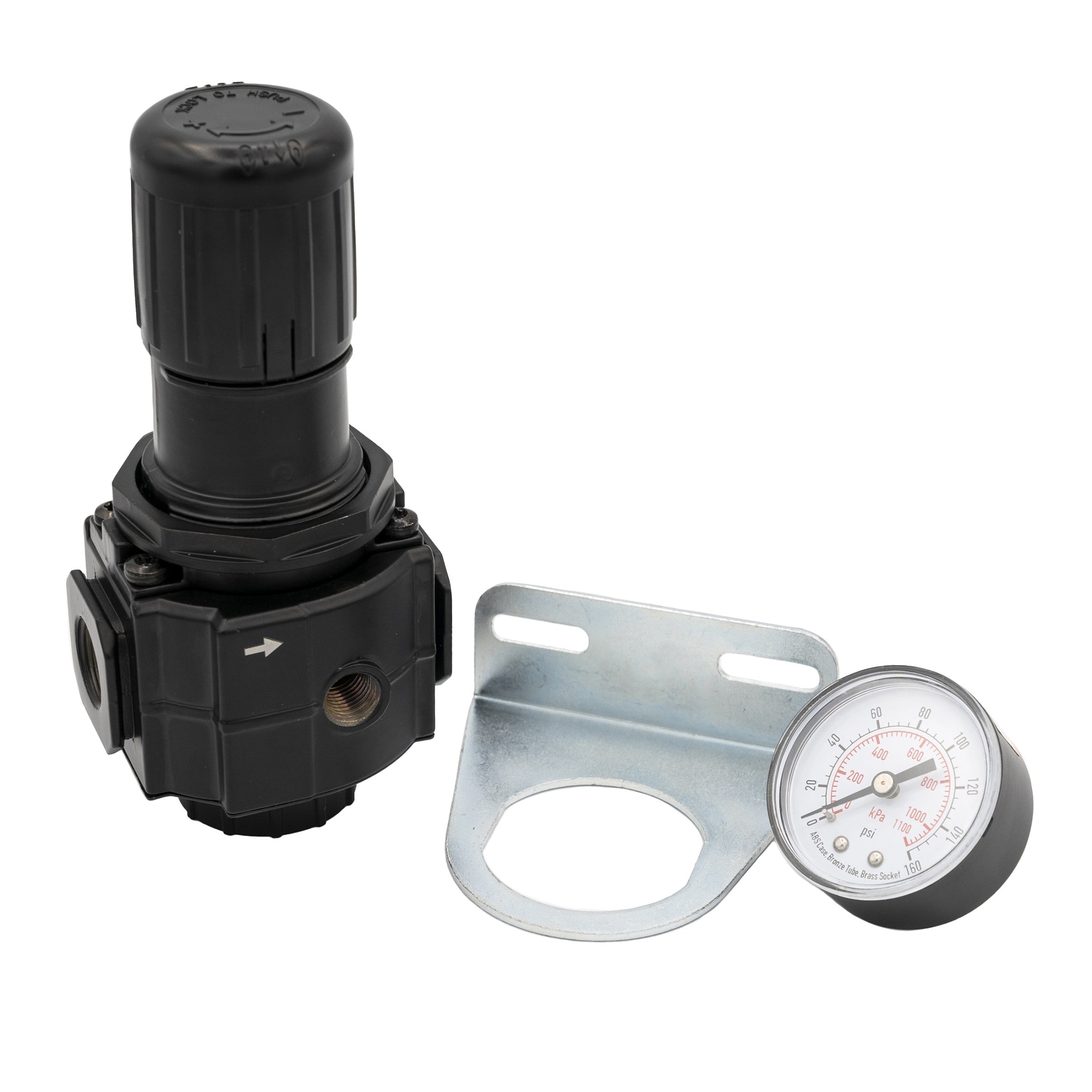

HAK PNEUMATIC Heavy Duty Air Regulator 1/2" NPT, 220 cfm, 160 psi Max Op Pressure ( R74 TYPE REGULATOR )
Regular price
$76.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
ABOUT THE PRODUCT.

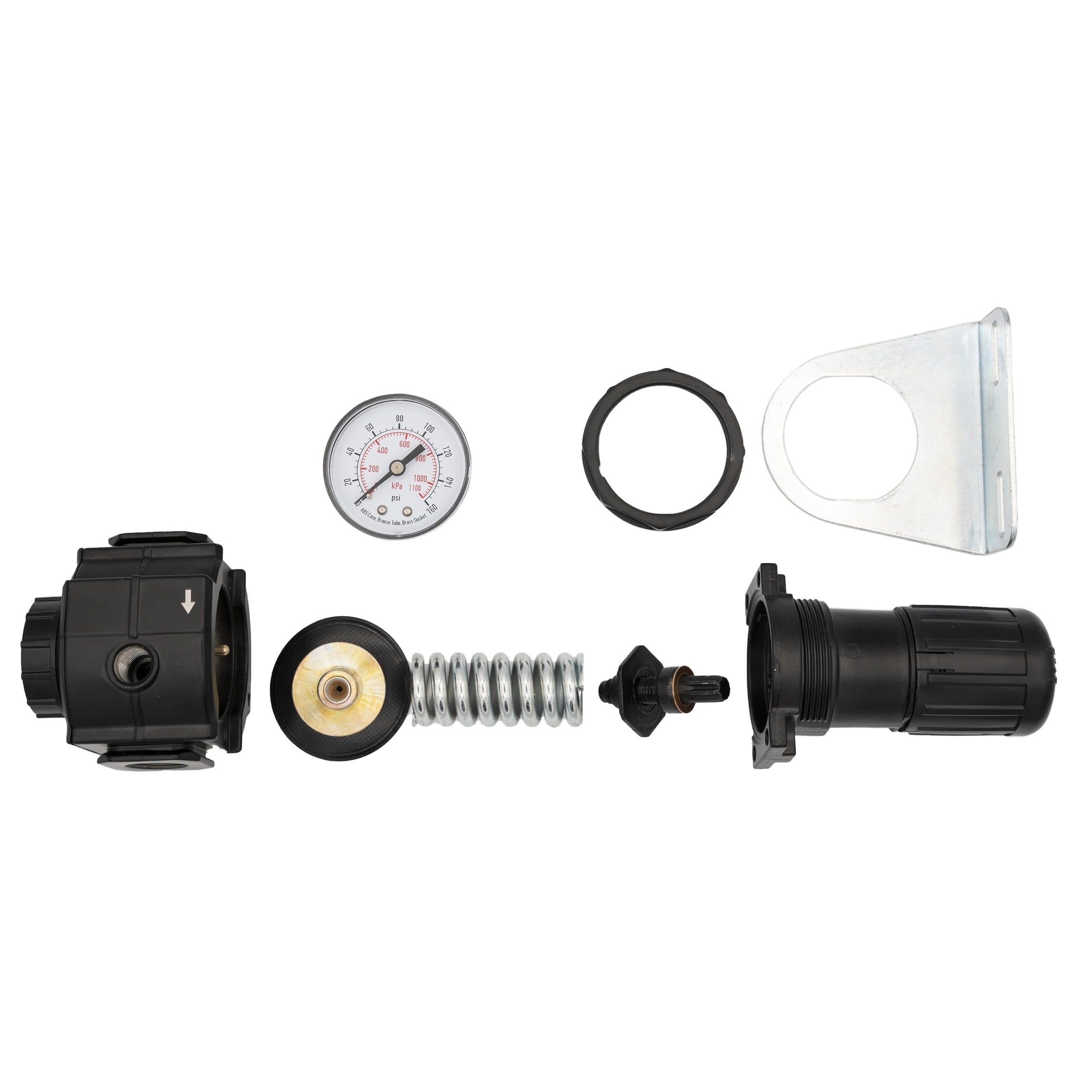

HAK PNEUMATIC #4ZM22 design allows in-line or modular installation with Full flow gauge portsA balanced valve design minimizes the effect of variation in the inlet pressure on the outlet pressure Standard relieving models allow reduction of downstream pressure when the system is dead-endedPARTS DECRIPTION.
| Item Number 4ZM22 | PARTS DESCRIPTION |
|---|---|
| 1 | T-handle kit |
| 2 | Wall bracket & panel nut |
| 3 | Panel nut |
| 4 | Universal wall bracket |
| 5 | Diaphragm |
| 6 | Valve assembly |
| 7 | Bottom plug assembly |
OVERALL DIMENTIONS.
TECHNICAL SPECIFICATION
| Item Number | 4ZM22 | Series | HEAVY DUTY |
|---|---|---|---|
| Air Inlet Size | 1/2 " | Air Inlet Gender | Female |
| Air Inlet Type | NPT | Air Outlet Gender | Female |
| Maximum Flow Rate | 220 cfm | Air Outlet Size | 1/2" |
| Maximum Operating Pressure | 300 psi | Air Outlet Type | NPT |
| Maximum Operating Temperature | 175 Degrees F | Body Material | Aluminum |
| Pressure Gauge Included | YES | Overall Height | 6 11/16" |
| Overall Width | 3 1/8 " | Pressure Gauge Port Size | 1/4 in |
| Pressure Gauge Port Type | NPT |
