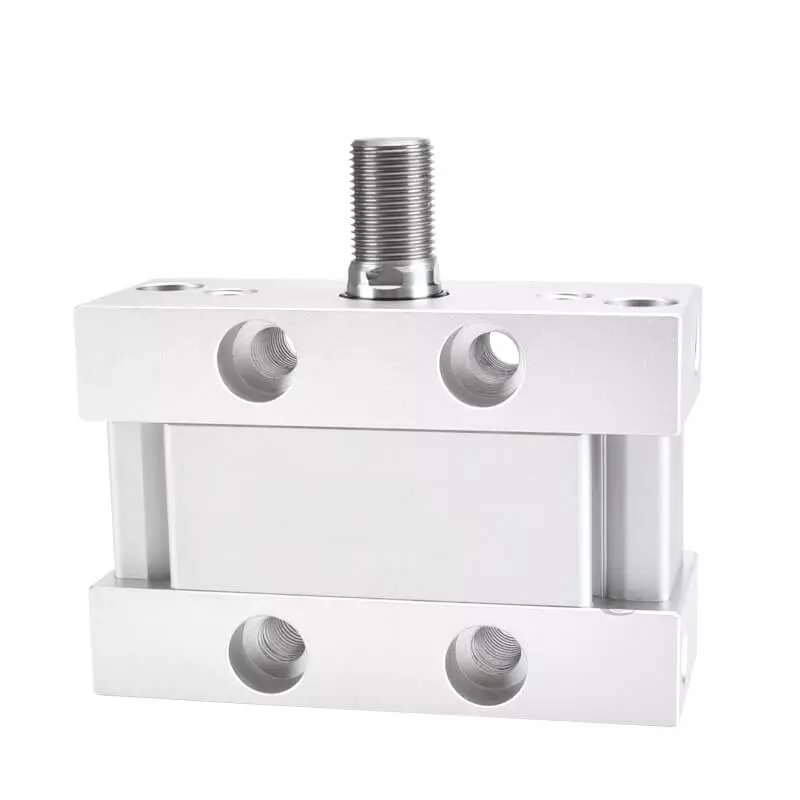

HAK Pneumatic MU Series Plate Air Cylinder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
The MU oval piston plate cylinder, with its elliptical design, provides a low profile while maintaining force output. The MU pneumatic cylinder solves the problem of higher working pressures that typical flat cylinders may require. The oval piston shape also provides an intrinsic non-rotating function without having to use a rod with flats, offering increased bearing and seal life. Double force and multi-force plate cylinders are customized.
Product Feature
1. Plate-type cylinder design for ultra compact, oval piston design for non-rotation and space saving.
2. Possible to mount without brackets.
3. There are magnetic switch slots on the sides for the cylinder body, which is convenient to install the inducting switch.
4. The internal diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.
5. The seal of the piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of oil storage.
6. Strokes up to 300mm.
7. Installing accessories with various specifications is optional.
Click to download MU Series Plate Air Cylinder Catalogue
