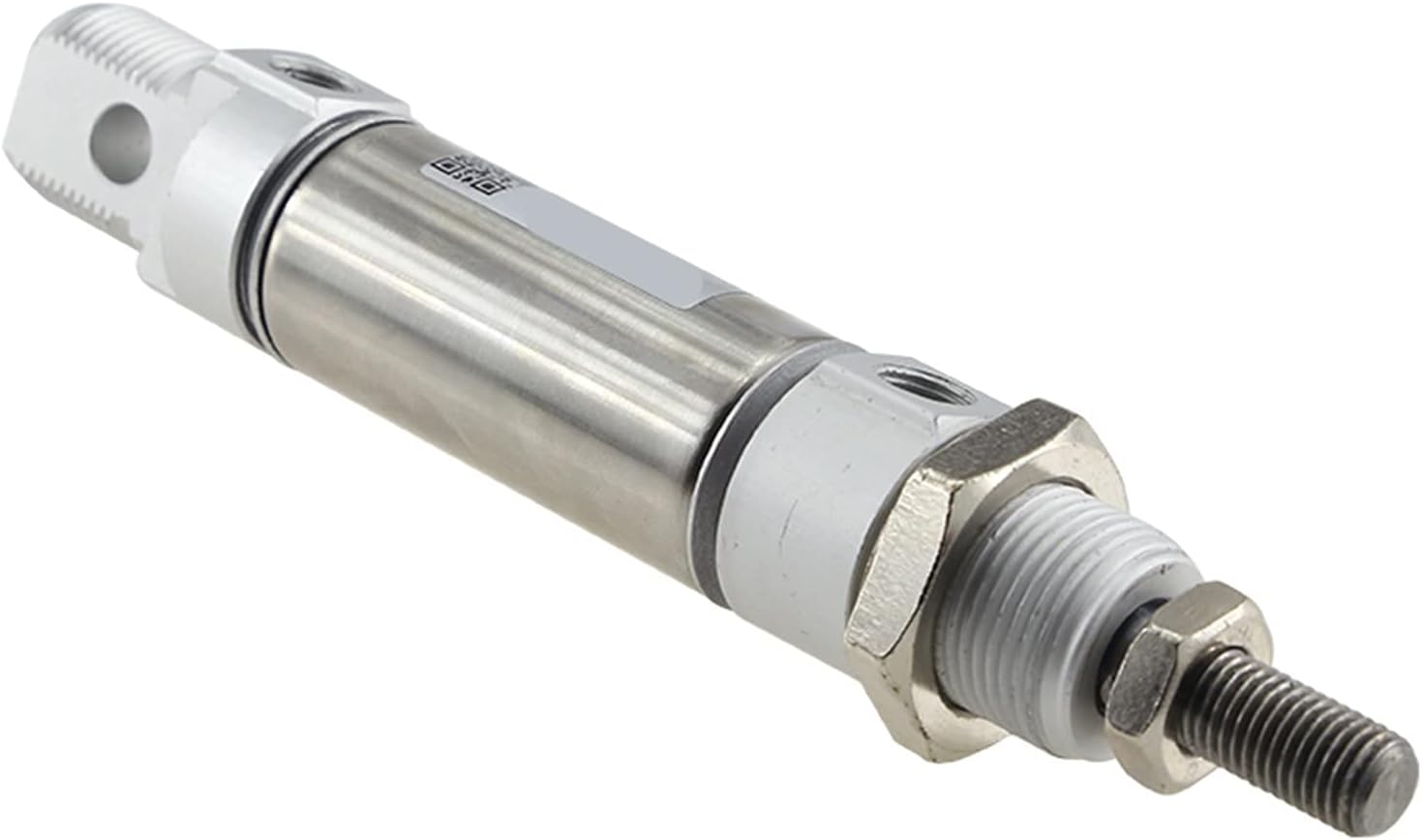

HAK Pneumatic DSNU Type 12 MM Stainless Steel Barrel-Double Acting, Single Rod Air Cylinder
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Internal Structure
| Number | NAME | Number | NAME | |
|---|---|---|---|---|
| 1 | Piston rod | 9 | O ring | |
| 2 | Hexagon nut | 10 | Piston seal | |
| 3 | Shaft seal | 11 | Anti-friction seal | |
| 4 | Hexagon nut | 12 | Magnet | |
| 5 | DU bearing | 13 | Piston | |
| 6 | Front cover | 14 | Socket head cap screw | |
| 7 | Anti-collision gasket | 15 | Back cover | |
| 8 | Barrel |
Specification
| Bore | 12 MM |
|---|---|
| Available Stroke | 10~200 MM |
| Operating Pressure | 14.5 ~ 145 PSI |
| Proof Pressure | 217 PSI |
| Operating Temperature Range | -20～80℃ |
| Cushion | Adjustable Air Cushion At Both Ends |
| Port Sizes | M5 |
| Road Thread Size | M6 |
| Aperion | Double Acting |
Dimensions
You can request dimensions by contacting us directly
