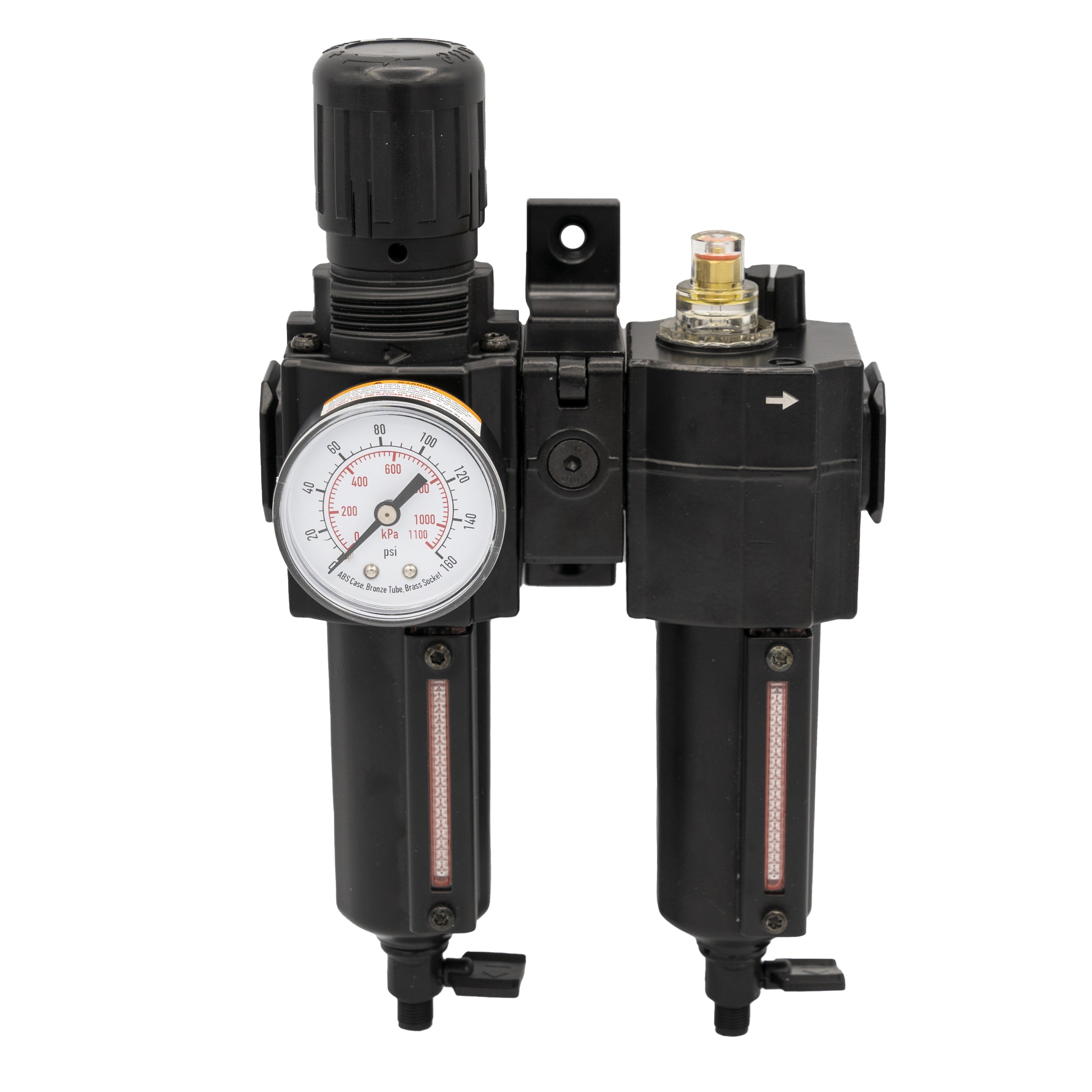

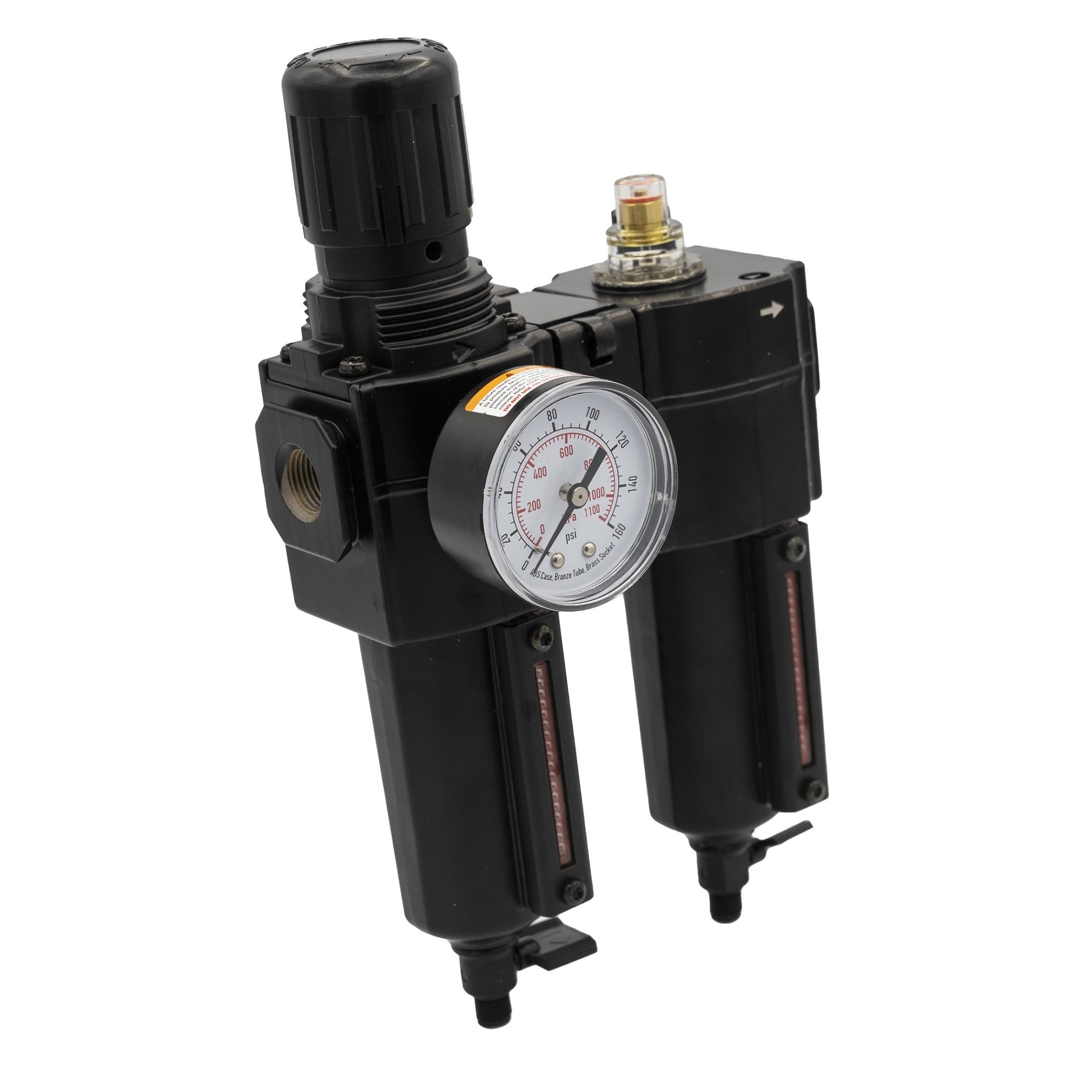

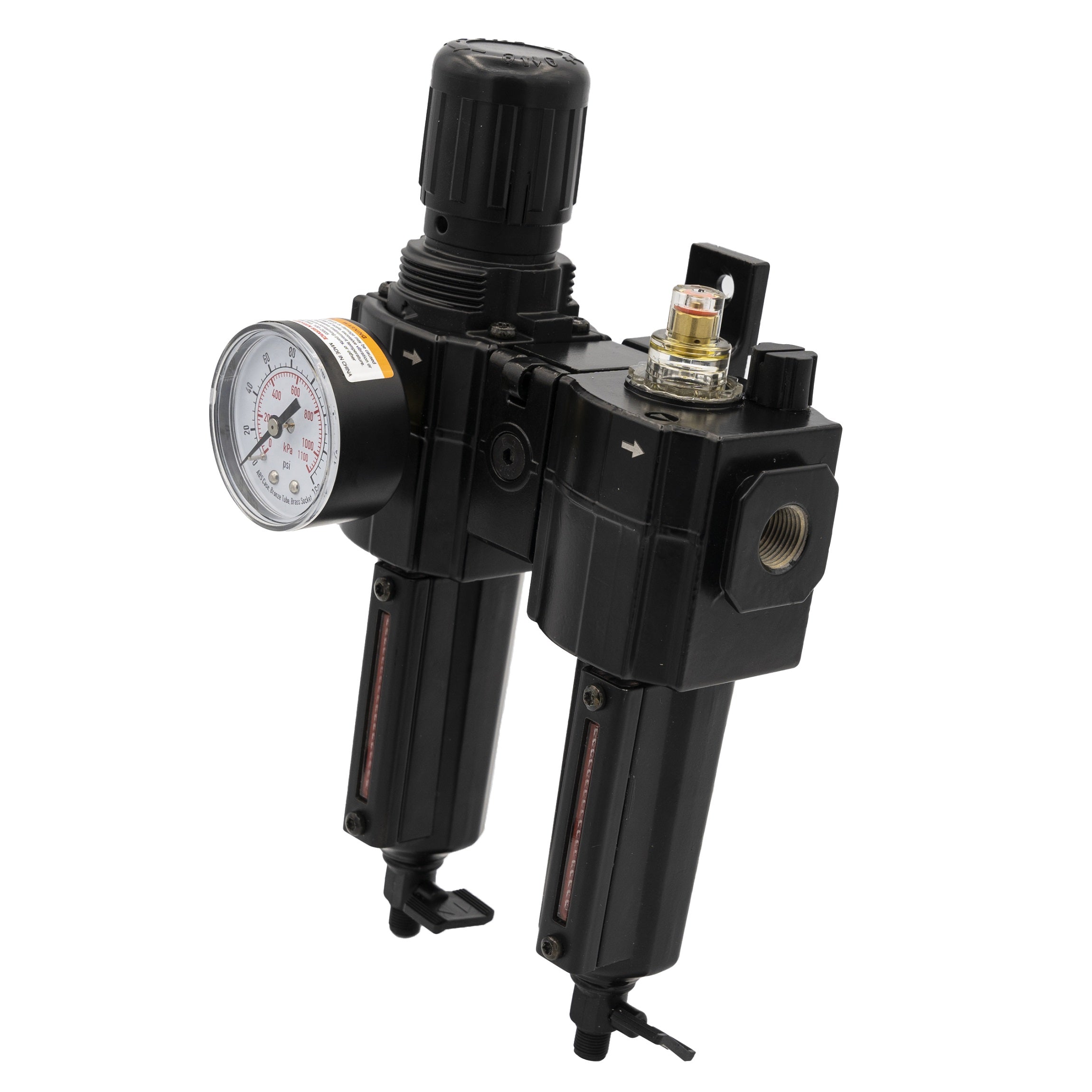

HAK PNEUMATIC Heavy Duty Filter-Regulator-Lubricator 3/8" NPT, 192 cfm, 160 psi Max Op Pressure, 5 micron, Mist (74 series)
Regular price
$180.00
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
ABOUT THE PRODUCT.
HAK PNEUMATIC #2FRL30M-N03 Filter/Regulator-Lubricator Combination Units, Quick-release bayonet bowlThe lubricator flow sensor provides a nearly constant oil/ air ratio over a wide range of airflowsAll-around (360°) visibility of the lubricator sight-feed dome simplifies installation and adjustment Regulator balanced valve minimizes the effect of variation in the inlet pressure on the outlet pressure.OVERALL DIMENTIONS.
TECHNICAL SPECIFICATION
| Item Number | 2FRL30M-N03 | Duty Rating | HEAVY DUTY |
| Air Inlet Size | 1/2" | For Fluid Type | Air |
| Air Inlet Type | NPT | For Substance Type | Air |
| Maximum Flow Rate | 192 cfm | Includes | Mounting Brackets, Pressure Gauge |
| Maximum Operating Pressure | 250 psi | Lubricator Bowl Material | Metal |
| Filter Rating | 5 micron | Lubricator Type | Mist |
| Filter Bowl Material | Metal | Maximum Operating Temperature | 175 Degrees F |
| Filter Bowl Capacity | 7 oz | Maximum Regulated Pressure | 160 psi |
| Lubricator Bowl Capacity | 7 oz | Minimum Regulated Pressure | 5 psi |
| Drain Type | Manual | Number of Air Inlets | 1 |
| Overall Width | 6 13/16" | Number of Air Outlets | 1 |
| Air Outlet Size | 1/2" | Oil Capacity | 7 OZ |
| Air Outlet Type | NPT | Overall Height | 11 15/16" |
| Drain Included | NO |
