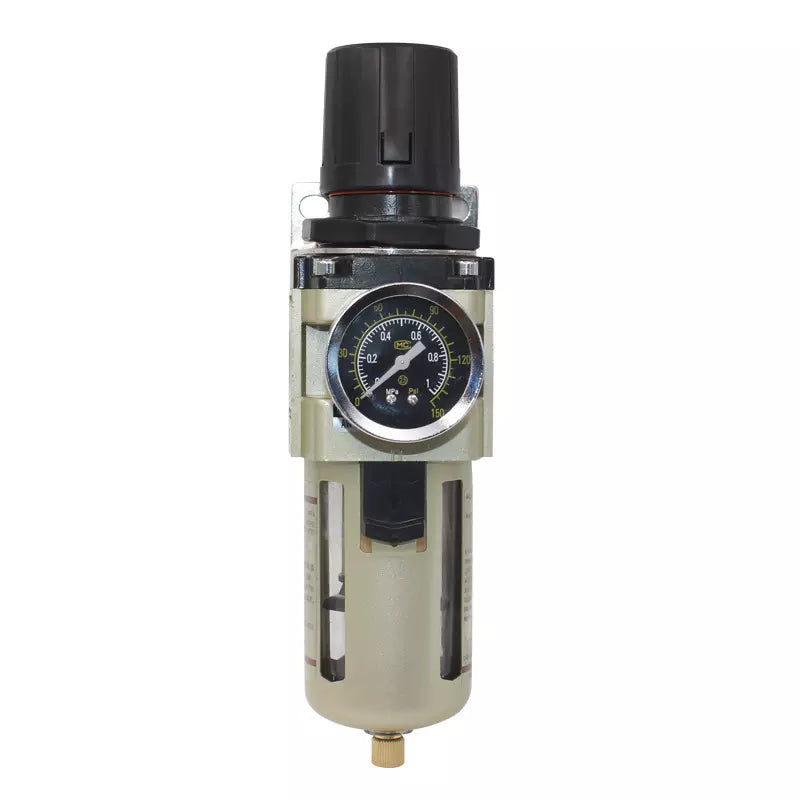

HAK Pneumatic Filter-Regulator 1/4" NPT (Inlets/Outlets), 5-125 PSI Adjustable Range, Single Gauge For Air Prep Components 25 μ (AW3000-02).
Regular price
$70.56
✅ In Stock – Ready to Ship From Canada
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Description
Filter: It Can Effectively Filter Impurities, Dust, Moisture, and Particles in the Air
Regulating Function: For pressures Ranging from 5 ~ 125 PSI, You Can Pull the Black Button on the Filter and Rotate It to Reduce the Pressure.
Specification
| Item Number | AW3000-02 | AW3000-02D |
|---|---|---|
| Port Size | 1/4" NPT | 1/4" NPT |
| Port Size (Pressure Gauge) | 1/8" NPT | 1/8" NPT |
| Regulating Range | 5 - 125PSI | 5 - 125PSI |
| Max. Operating Pressure | 150PSI(9.9 kgf/cm^2) | 150PSI(9.9 kgf/cm^2) |
| Operating Temperature | 40 - 140°F(5 - 60°C) | 40 - 140°F(5 - 60°C) |
| Filtration | 25 Micron | 25 Micron |
| Bowl Material | Polycarbonate (Standard) | Polycarbonate (Standard) |
| Bowl Guard | N/A | N/A |
| Body Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Construction/Regulator | Relieving Type | Relieving Type |
| Seals | NBR | NBR |
| Drain Options | Semi-Auto Drain | Auto Drain |
| Service | For Air Only | For Air Only |
