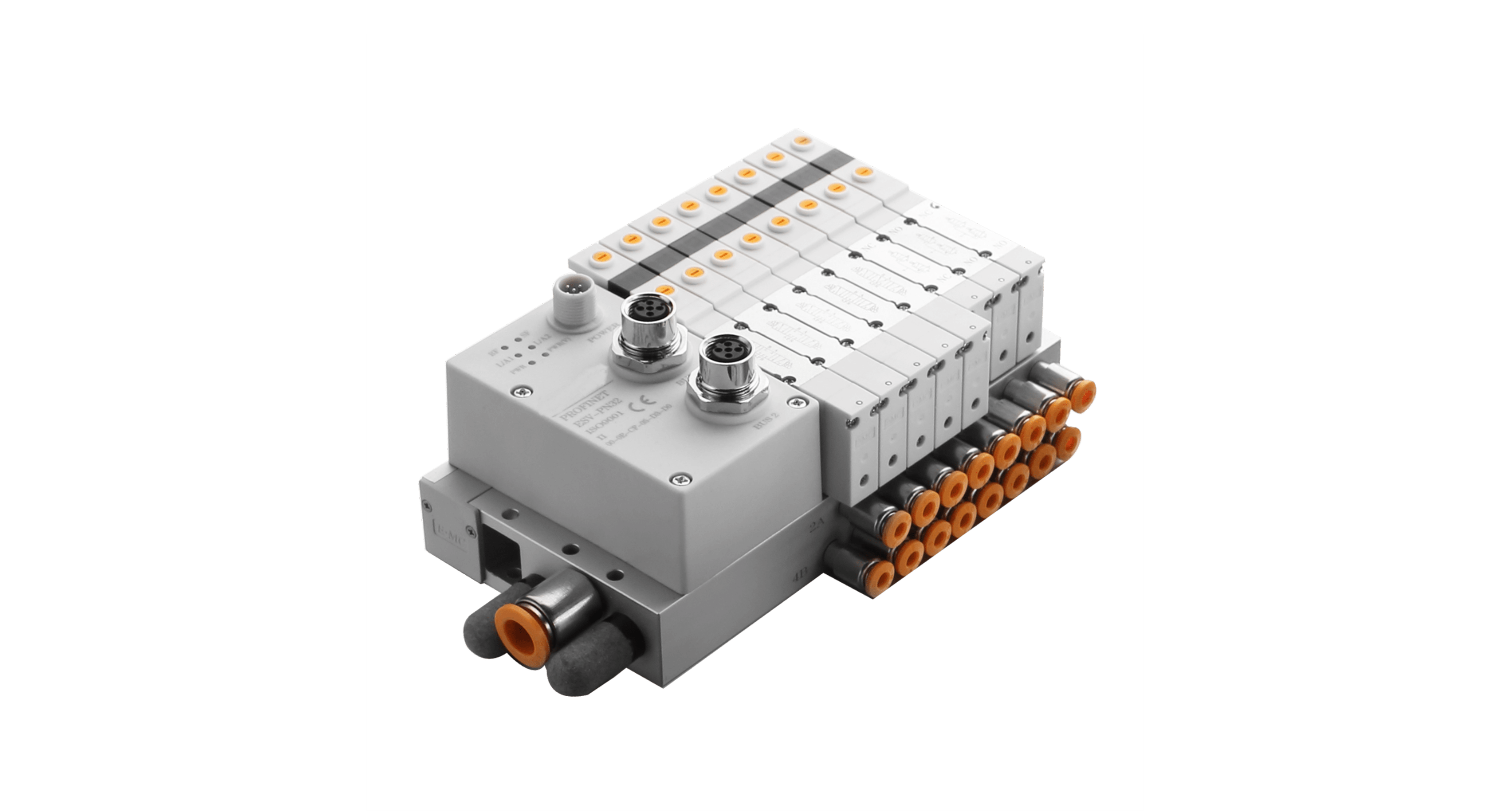

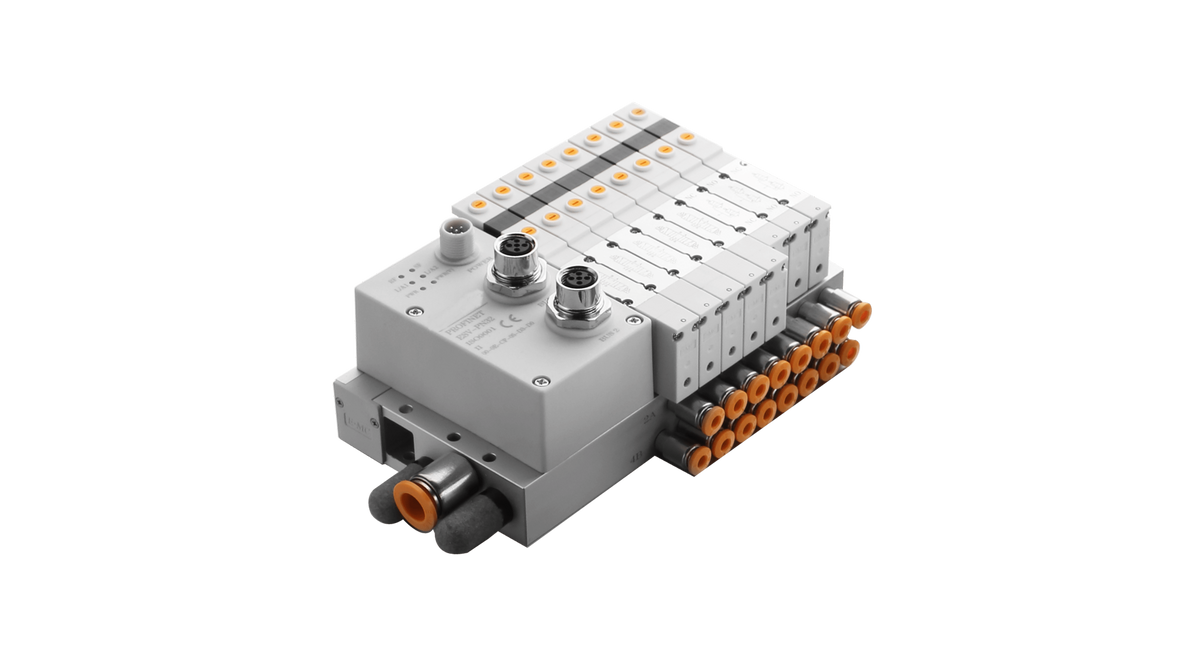

HAK Pneumatic ESV Fieldbus Valve Terminal

• Compatible Protocols: PROFINET、EtherCAT、EtherNet/IP、DeviceNet and CC-Link.

• 32 output and 48 output optional.

• Equipped with two M12 BUS Interfaces, realize daisy-chain wiring communication, a branch connector is not necessary.

• system diagnosis, communication error, working life count, short circuit protection, open circuit inspection, opposite connection protection, undervoltage and overvoltage diagnosis.

• Safe output can be set at any point in the module parameter interface. For example, when the bus connection is interrupted, the valve could keep the last condition, or be forced to close or open.

• The shielded cable has strong anti-interference ability, and the communication is stable and reliable.

IO-Link:

• Compatible Protocols :l/O-Link,general-purpose 5-wire unshielded cables are used for connection l/O-Link master and exchange data with PLC.

• Support hot swap, data is stored in the l/0-LINK master, no need to reconfigure parameters to replace the valve island. The newly replaced is automatically identified and starts to work at once, reducing equipment downtime, reducing maintenance costs, and improving production efficiency.

• Diagnostic functions: system diagnosis, communication error, and short circuit protection.

• Independent of the fieldbus, possesses strong industrial network compatibility, supplies popular fieldbus and industrial Ethernet.

• Communication is completely digitally transmitted, reducing the accuracy loss of analog-to-digital conversion, possess strong anti-interference ability. Maximum transmission distance is 20 meters.

Click to download ESV Fieldbus Valve Terminal Catalogue
