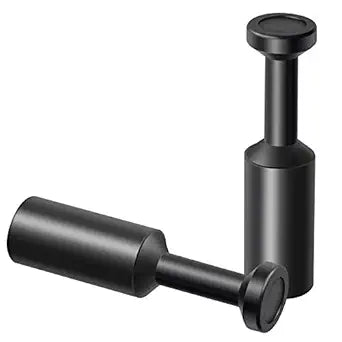

HAK Pneumatic EPP SERIES Push to Connect Plug – Imperial Tube
✅ In Stock – Ready to Ship From Canada
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
PUSH IN FITTINGS, PNEUMATIC PUSH IN FITTINGS.
The push-in fittings (also called pneumatic push-in fittings, push-to-connect fittings, and one-touch fittings in some locations).Inside the push-in fittings, stainless steel tube gripping claw, collar, and release sleeve (collet) are assembled to offer a quick hold and release mechanism to provide a low disconnection force for easy removal of the tubing with no tools necessary.
PUSH IN FITTINGS WITH METRIC AND INCH SIZE TUBE, NPT CONNECTION THREAD.
HAK Pneumatic NPT thread push-in fittings cover a complete line of types, models, and sizes to satisfy various tube demands.
HAK Pneumatic push-to-connect fittings are designed for use with soft and stiff tubing, such as nylon and polyethylene tubing.
HAK Pneumatic push-in fittings are designed for use with nylon and polyethylene tubing that accommodate metric tubing O.D. ranging from 4mm to 16mm and accommodate inch tubing from 1/8” to 1/2”. Thread sizes range from 1/8” NPT to 1/2” NPT.
Construction/Specification
| Fluid | Air, Vacuum |
|---|---|
| Operating Pressure | 0～145 PSI |
| Max Pressure | 174 PSI |
| Operating Temperature | 5～60℃ |
| Applicable Tube | PU Polyurethane and Nylon |
Sizing Information
| Item Number | Tube O.D. |
|---|---|
| EPP-1/8" | 1/8" |
| EPP-5/32" | 5/32" |
| EPP-3/16" | 3/16 |
| EPP-1/4" | 1/4" |
| EPP-5/16" | 5/16" |
| EPP-3/8" | 3/8" |
| EPP-1/2" | 1/2" |
Learn More: Assembly Instructions
